Product Description
Get ready for the Spring '26 ECE 351C: Electronic Circuits lab course by ordering your lab kit today!
Instructor: Dr. Dale Hetherington
ECE 351C: Electronic Circuits is a course focusing on fundamental nonlinear devices like diodes and transistors, teaching students to analyze linear amplifiers, use small-signal models, design logic gates, and build simple transistor/diode circuits using simulation software, essential for circuit design.

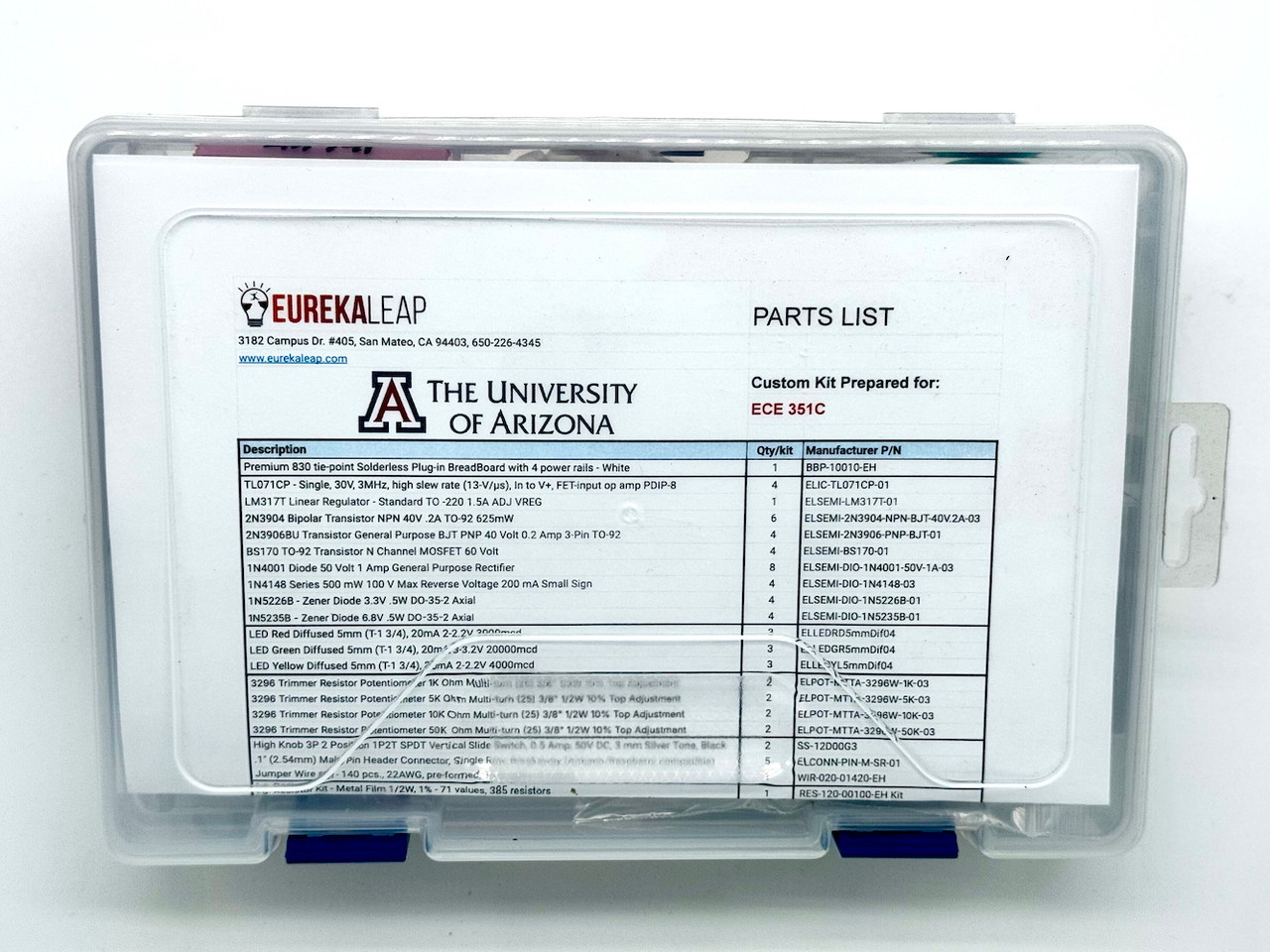

This kit has been prepared exclusively for University of Arizona students and contains the components as listed below:
| Description | Qty/kit | Part Number |
| Premium 830 tie-point Solderless Plug-in BreadBoard with 4 power rails - White | 1 | BBP-10010-EH |
| TL071CP - Single, 30V, 3MHz, high slew rate (13-V/µs), In to V+, FET-input op amp PDIP-8 | 4 | ELIC-TL071CP-01 |
| LM317T Linear Regulator - Standard TO -220 1.5A ADJ VREG | 1 | ELSEMI-LM317T-01 |
| 2N3904 Bipolar Transistor NPN 40V .2A TO-92 625mW | 6 | ELSEMI-2N3904-NPN-BJT-40V.2A-03 |
| 2N3906BU Transistor General Purpose BJT PNP 40 Volt 0.2 Amp 3-Pin TO-92 | 4 | ELSEMI-2N3906-PNP-BJT-01 |
| BS170 TO-92 Transistor N Channel MOSFET 60 Volt | 4 | ELSEMI-BS170-01 |
| 1N4001 Diode 50 Volt 1 Amp General Purpose Rectifier | 8 | ELSEMI-DIO-1N4001-50V-1A-03 |
| 1N4148 Series 500 mW 100 V Max Reverse Voltage 200 mA Small Sign | 4 | ELSEMI-DIO-1N4148-03 |
| 1N5226B - Zener Diode 3.3V .5W DO-35-2 Axial | 4 | ELSEMI-DIO-1N5226B-01 |
| 1N5235B - Zener Diode 6.8V .5W DO-35-2 Axial | 4 | ELSEMI-DIO-1N5235B-01 |
| LED Red Diffused 5mm (T-1 3/4), 20mA 2-2.2V 3000mcd | 3 | ELLEDRD5mmDif04 |
| LED Green Diffused 5mm (T-1 3/4), 20mA 3-3.2V 20000mcd | 3 | ELLEDGR5mmDif04 |
| LED Yellow Diffused 5mm (T-1 3/4), 20mA 2-2.2V 4000mcd | 3 | ELLEDYL5mmDif04 |
| 3296 Trimmer Resistor Potentiometer 1K Ohm Multi-turn (25) 3/8" 1/2W 10% Top Adjustment | 2 | ELPOT-MTTA-3296W-1K-03 |
| 3296 Trimmer Resistor Potentiometer 5K Ohm Multi-turn (25) 3/8" 1/2W 10% Top Adjustment | 2 | ELPOT-MTTA-3296W-5K-03 |
| 3296 Trimmer Resistor Potentiometer 10K Ohm Multi-turn (25) 3/8" 1/2W 10% Top Adjustment | 2 | ELPOT-MTTA-3296W-10K-03 |
| 3296 Trimmer Resistor Potentiometer 50K Ohm Multi-turn (25) 3/8" 1/2W 10% Top Adjustment | 2 | ELPOT-MTTA-3296W-50K-03 |
| .1" (2.54mm) Male Pin Header Connector, Single Row, Breakaway (Arduino/Raspberry compatible) | 5 | ELCONN-PIN-M-SR-01 |
| Jumper Wire set - 140 pcs., 22AWG, pre-formed, 14 lengths, 9 colors | 1 | WIR-020-01420-EH |
| Lg. Resistor Kit - Metal Film 1/2W, 1% - 71 values, 385 resistors | 1 | RES-120-00100-EH Kit |
| Each kit contains: 5 each of the following Ohm values: 1.2, 1.5, 2.2, 2.7, 3.3, 4.7, 5.6, 6.8, 8.2, 10, 12, 15, 18, 22, 27, 33, 39, 47, 56, 68, 82, 120, 150, 180, 220, 270, 330, 390, 470, 560, 680, 820, 1.2k, 1.5k, 1.8k, 2.2k, 2.7k, 3.3k, 3.9k, 4.7k, 5.6k, 6.8k, 8.2k, 12k, 15k, 18k, 22k, 27k, 33k, 39k, 47k, 56k, 68k, 82k, 120k, 150k, 180k, 220k, 270k, 330k, 390k, 470k, 560k, 680k, 820k; and 10 each of the following Ohm values: 1, 100, 1k, 10k, 100k, 1m | ||
| Resistor Metal Film - 1.5M Ohms 1/2W Axial, 1% | 5 | ELRES-MF1/2W-1%-1.5M-01 |
| Ceramic Disc Capacitor 10pF 50V ±20% | 2 | ELCAP-CD-50V-10P-03 |
| Ceramic Disc Capacitor 15pF 50V ±20% | 2 | ELCAP-CD-50V-15P-03 |
| Capacitor Ceramic Disc 33pF 50V ±20% | 2 | ELCAP-CD-50V-33P-03 |
| Capacitor Ceramic Disc 220pF 50V 20% | 2 | ELCAP-CD-50V-220P-03 |
| Ceramic Disc Capacitor 470pF 50V ±20% | 2 | ELCAP-CD-50V-470P-03 |
| Ceramic Disc Capacitor .001uF / 1000pF / 1nF 50V 10% 85C 2.5mm | 2 | ELCAP-CD-50V-1000P/1N-03 |
| Ceramic Disc Capacitor .0012uF / 1200pF / 1.2nF 50V 20% | 2 | ELCAP-CD-50V-1200P/1.2N-03 |
| Ceramic Disc Capacitor .0022uF / 2200pF / 2.2nF 50V 20% | 2 | ELCAP-CD-50V-2200P/2.2N-03 |
| Capacitor Ceramic Disc 0.022µF 50V ±20% | 2 | ELCAP-CD-50V-.022U-03 |
| Multilayer Ceramic Capacitors MLCC - Leaded 0.033uF 50V 10% Z5U | 2 | ELCAP-MLC-50V-.033U-03 |
| Multilayer Ceramic Capacitors MLCC - Leaded 0.056uF 50V 20% X7R | 2 | ELCAP-MLC-50V-.056U-03 |
| Multilayer Ceramic Capacitors MLCC - Leaded 0.1uF 50V 10% X7R | 2 | ELCAP-MLC-50V-.1U-03-2 |
| Aluminum Electrolytic Capacitors - Radial Leaded 2.2uF 25V 2.2 5x11mm 20% 105c | 2 | ELCAP-AE-25V-2.2U-03 |
| Aluminum Electrolytic Capacitors - Radial Leaded 3.3uF 50V 5x11 20% 105c | 2 | ELCAP-AE-50V-3.3U-01 |
| Aluminum Electrolytic Capacitors - Radial Leaded 10uF 16V 5x11 20% 85c | 2 | ELCAP-AE-16V-10U-03 |
| Aluminum Electrolytic Capacitors - Radial Leaded 22uF 16V 5x11 20% 105c | 2 | ELCAP-AE-16V-22U-03 |
| Aluminum Electrolytic Capacitors - Radial Leaded 47uF 16V 5x11 20% 105c | 2 | ELCAP-AE-16V-47U-03 |
| Aluminum Electrolytic Capacitors - Radial Leaded 100uF 16V 5x11 20% 105c | 2 | ELCAP-AE-16V-100U-03 |
| Aluminum Electrolytic Capacitors - Radial Leaded 220uF 10V 5x11 20% 105c | 2 | ELCAP-AE-10V-220U-03 |
| Aluminum Electrolytic Capacitors - Radial Leaded 470uF 16V 8x12 20% 105c | 2 | ELCAP-AE-16V-470U-03 |
| Aluminum Electrolytic Capacitors - Radial Leaded 1200uF 10V 20% 85c | 2 | ELCAP-AE-10V-1200U-01 |
| Aluminum Electrolytic Capacitors - Radial Leaded 1500uF 16V 10x20mm 20% 105c | 2 | ELCAP-AE-16V-1500U-01 |
| Aluminum Electrolytic Capacitors - Radial Leaded 2200uF 6.3V 10x16mm 20% 105c | 2 | ELCAP-AE-6.3V-2200U-03 |
| Tantalum Capacitor - Radial 1uF 50 Volt 10% | 2 | ELCAP-RT-50V-1U-03 |
