Product Description
Get ready for the Fall '26 Engineering Lab 2 course by ordering your premium lab kit today!
This kit has been prepared exclusively by the IEEE student branch for University of South Florida students and contains the components as listed below.
Shipping details and options:
IMPORTANT - all kits ordered by August 28th will be bulk shipped for pick up on campus.
Please enter the following shipping address at checkout:
(Your name here) c/o USF IEEE
4202 East Fowler Ave
ENG030
Tampa, FL 33620
IMPORTANT NOTE: All orders placed before August 28th will be shipped to and must be picked up on campus. Please see the USF IEEE student branch for specific details on picking up your order.
Orders received before August 28th will enjoy discounted bulk shipping cost of $4.99 per kit and will be available to pick up on campus with pick-up some time up to or after Sept. 3rd.
Orders received after August 28th will be sent via two day air express service at a flat rate of $16.97 per kit (kit only) and be sent direct to student address given at checkout.
All kits sales are final once shipped.
FOR REMOTE STUDENTS (NEED KIT SENT OUTSIDE OF USA) - International students (located outside of USA) will be required to pay for additional shipping. The $16.97 fee will be credited towards the preparation of the kit and all customs & shipping documentation for the international shipment from the USA, but does not include the full cost of shipping. Please reach out to us directly at support@eurekaleap.com for assistance and to work out shipping documentation and details. Thank you.

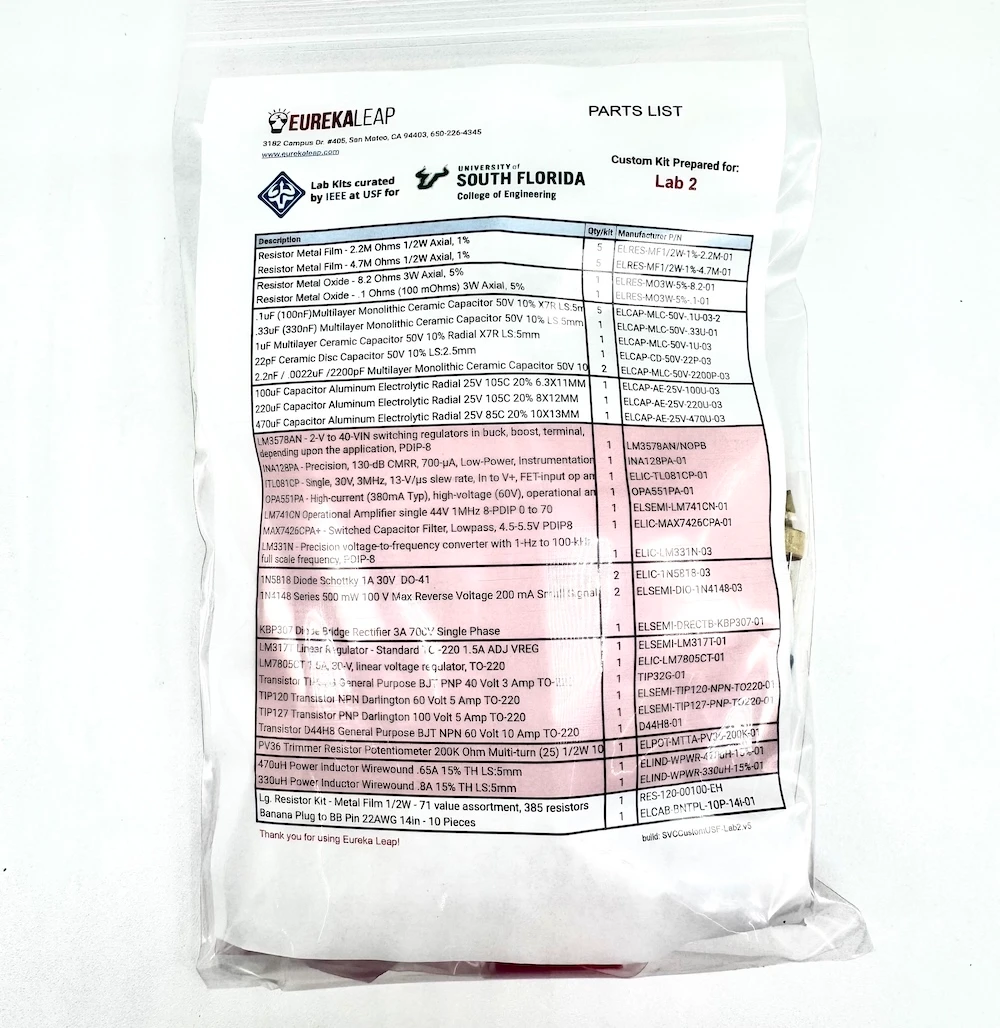

Your custom kit includes:
| Description | Qty/kit | Manufacturer P/N |
| Resistor Metal Film - 2.2M Ohms 1/2W Axial, 1% | 5 | ELRES-MF1/2W-1%-2.2M-01 |
| Resistor Metal Film - 4.7M Ohms 1/2W Axial, 1% | 5 | ELRES-MF1/2W-1%-4.7M-01 |
| Resistor Metal Oxide - 8.2 Ohms 3W Axial, 5% | 1 | ELRES-MO3W-5%-8.2-01 |
| Resistor Metal Oxide - .1 Ohms (100 mOhms) 3W Axial, 5% | 1 | ELRES-MO3W-5%-.1-01 |
| .1uF (100nF)Multilayer Monolithic Ceramic Capacitor 50V 10% X7R LS:5mm | 5 | ELCAP-MLC-50V-.1U-03-2 |
| .33uF (330nF) Multilayer Monolithic Ceramic Capacitor 50V 10% LS:5mm | 1 | ELCAP-MLC-50V-.33U-01 |
| 1uF Multilayer Ceramic Capacitor 50V 10% Radial X7R LS:5mm | 1 | ELCAP-MLC-50V-1U-03 |
| 22pF Ceramic Disc Capacitor 50V 10% LS:2.5mm | 1 | ELCAP-CD-50V-22P-03 |
| 2.2nF / .0022uF /2200pF Multilayer Monolithic Ceramic Capacitor 50V 10% LS:5mm | 2 | ELCAP-MLC-50V-2200P-03 |
| 100uF Capacitor Aluminum Electrolytic Radial 25V 105C 20% 6.3X11MM | 1 | ELCAP-AE-25V-100U-03 |
| 220uF Capacitor Aluminum Electrolytic Radial 25V 105C 20% 8X12MM | 1 | ELCAP-AE-25V-220U-03 |
| 470uF Capacitor Aluminum Electrolytic Radial 25V 85C 20% 10X13MM | 1 | ELCAP-AE-25V-470U-03 |
| LM3578AN - 2-V to 40-VIN switching regulators in buck, boost, terminal, depending upon the application, PDIP-8 | 1 | LM3578AN/NOPB |
| INA128PA - Precision, 130-dB CMRR, 700-µA, Low-Power, Instrumentation Amplifier PDIP-8 | 1 | INA128PA-01 |
| ITL081CP - Single, 30V, 3MHz, 13-V/µs slew rate, In to V+, FET-input op amp, PDIP-8 | 1 | ELIC-TL081CP-01 |
| OPA551PA - High-current (380mA Typ), high-voltage (60V), operational amplifier, PDIP-8 | 1 | OPA551PA-01 |
| LM741CN Operational Amplifier single 44V 1MHz 8-PDIP 0 to 70 | 1 | ELSEMI-LM741CN-01 |
| MAX7426CPA+ - Switched Capacitor Filter, Lowpass, 4.5-5.5V PDIP8 | 1 | ELIC-MAX7426CPA-01 |
| LM331N - Precision voltage-to-frequency converter with 1-Hz to 100-kHz full scale frequency, PDIP-8 | 1 | ELIC-LM331N-03 |
| 1N5818 Diode Schottky 1A 30V DO-41 | 2 | ELIC-1N5818-03 |
| 1N4148 Series 500 mW 100 V Max Reverse Voltage 200 mA Small Signal Diode -DO-35 | 2 | ELSEMI-DIO-1N4148-03 |
| KBP307 Diode Bridge Rectifier 3A 700V Single Phase | 1 | ELSEMI-DRECTB-KBP307-01 |
| LM317T Linear Regulator - Standard TO -220 1.5A ADJ VREG | 1 | ELSEMI-LM317T-01 |
| LM7805CT 1.5A, 30-V, linear voltage regulator, TO-220 | 1 | ELIC-LM7805CT-01 |
| Transistor TIP32G General Purpose BJT PNP 40 Volt 3 Amp TO-220 | 1 | TIP32G-01 |
| TIP120 Transistor NPN Darlington 60 Volt 5 Amp TO-220 | 1 | ELSEMI-TIP120-NPN-TO220-01 |
| TIP127 Transistor PNP Darlington 100 Volt 5 Amp TO-220 | 1 | ELSEMI-TIP127-PNP-TO220-01 |
| Transistor D44H8 General Purpose BJT NPN 60 Volt 10 Amp TO-220 | 1 | D44H8-01 |
| PV36 Trimmer Resistor Potentiometer 200K Ohm Multi-turn (25) 1/2W 10% Top Adjustment | 1 | ELPOT-MTTA-PV36-200K-01 |
| 470uH Power Inductor Wirewound .65A 15% TH LS:5mm | 1 | ELIND-WPWR-470uH-15%-01 |
| 330uH Power Inductor Wirewound .8A 15% TH LS:5mm | 1 | ELIND-WPWR-330uH-15%-01 |
| Lg. Resistor Kit - Metal Film 1/2W - 71 value assortment, 385 resistors | 1 | RES-120-00100-EH |
| Banana Plug to BB Pin 22AWG 14in - 10 Pieces | 1 | ELCAB-BNTPL-10P-14i-01 |
