Product Description

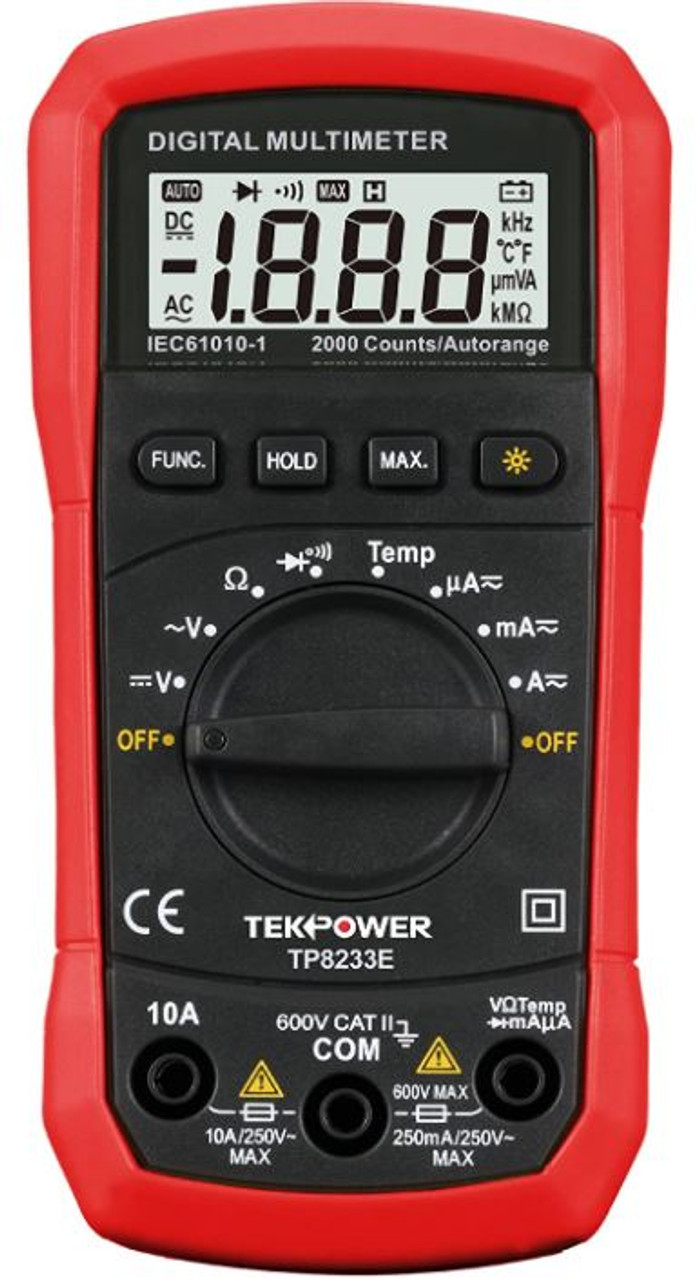

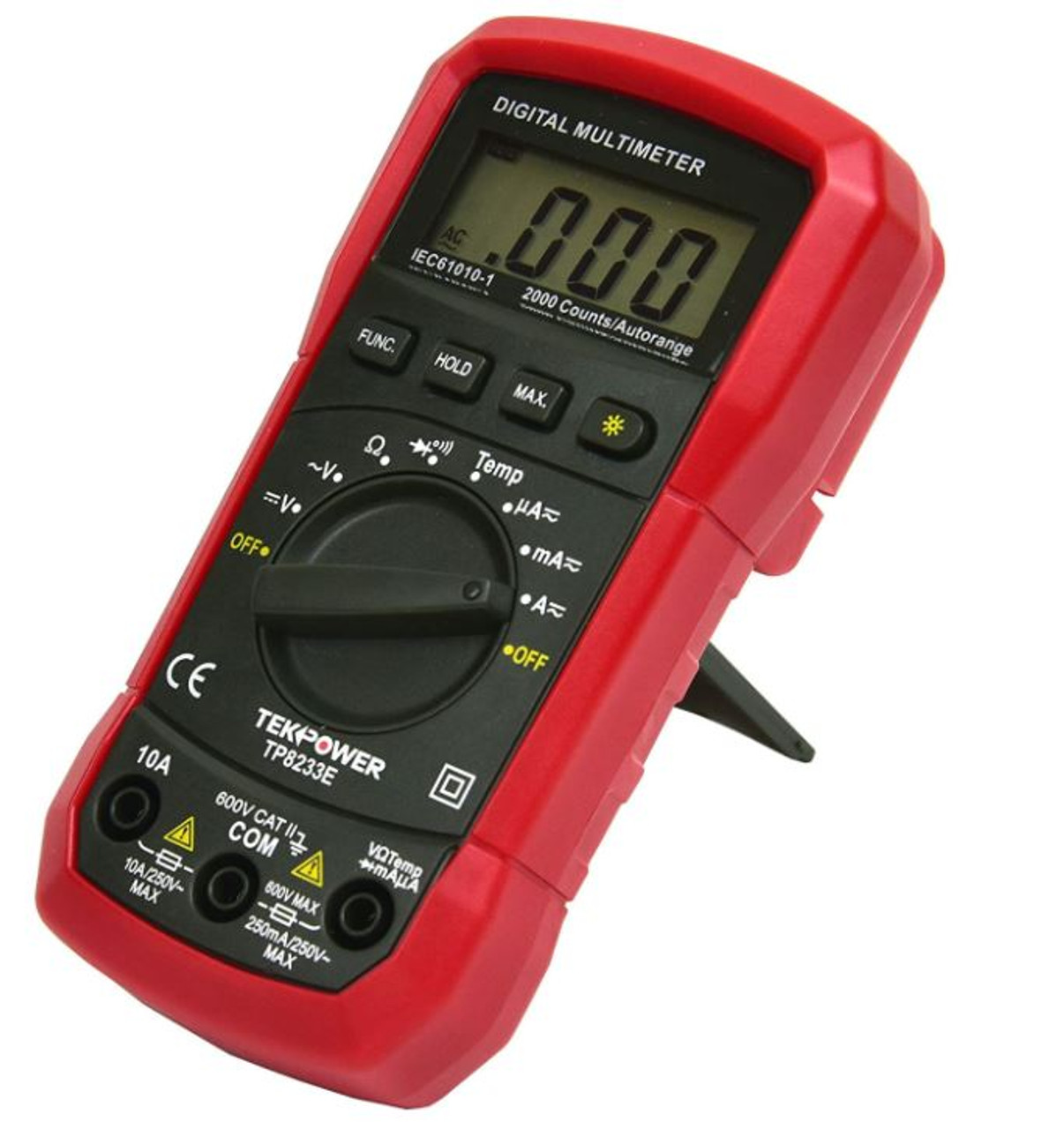

The TekPower TP8233E is a 2000 count digital multimeter that can be used to measure AC/DC Voltage, AC/DC Current, and Resistance and temperature. It can also perform Diode check and continuity test. This multimeter has been designed according to IEC61010-1 concerning electronic measuring instruments with an overvoltage category (CAT II) and pollution 2. It is a portable and easy to use meter that everyone should have.
Specifications:
DC Voltage:200mV / 2V / 20V / 200V / 600V
AC Voltage:200V/600V
DC Current:200uA/2mA/20mA/200mA/10A
AC Current:200uA/2mA/20mA/200mA/10A
Temperature(°C):-20°C~1000°C
Temperature(°F): -4°F~1832°F
Resistance:200 / 2K / 20K / 200K /2M
Operating temperature: 0~40C
Storage temperature: -10~50C
Power:1 x 6F22 (9V/Included)
Display: LCD 2000 counts, updates 2-3/ sec
Continuity test, diode test, backlight, data hold

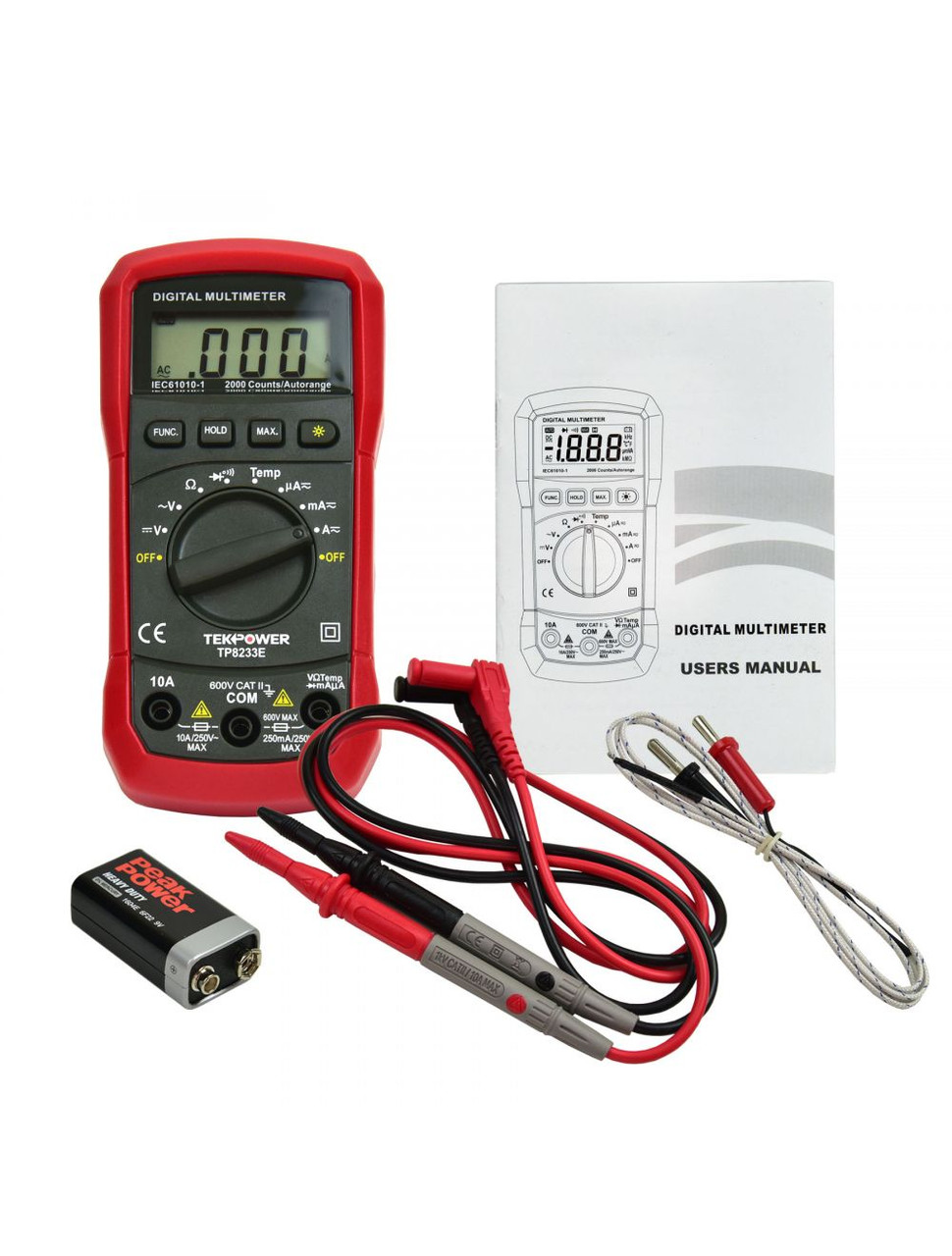

Package:
TP8233E Meter
User manual
9V Battery
Test Leads
