Product Description

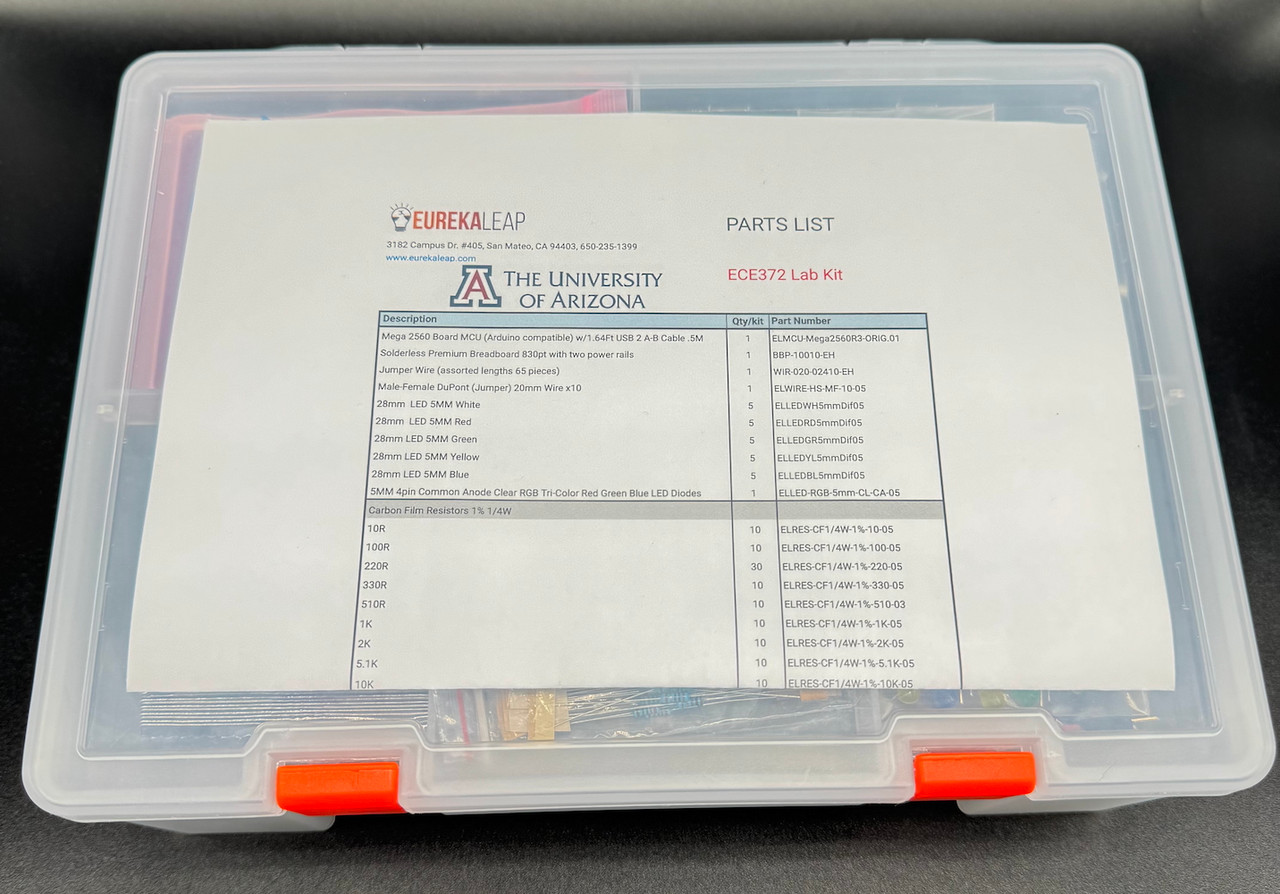

Get ready for the Spring '26 ECE 372 lab courses by ordering your Essentials lab kit today!
This kit has been prepared exclusively for University of Arizona students and contains the components listed below.
Alternatively, students are encouraged to consider the purchase of the bundle recommended below which includes this kit plus extra sensors and components at special price of $84.50 which is $10 OFF the original price. Quantities are limited. To take advantage of this special bundle, please use the link below:
Essentials Kit and Extras: Special bundle price $84.50
This kit includes free shipping to US addresses.
FOR REMOTE STUDENTS (NEED KIT SENT OUTSIDE OF USA) - Students located outside of USA will be required to pay for shipping. Please reach out to us directly at support@eurekaleap.com for assistance and to work out shipping documentation and details. Thank you.
All kits sales are final once shipped.
| Description | Qty/kit | Part Number |
| Mega 2560 Board MCU (Arduino compatible) w/1.64Ft USB 2 A-B Cable .5M | 1 | ELMCU-Mega2560R3-ORIG.01 |
| Solderless Premium Breadboard 830pt with two power rails | 1 | BBP-10010-EH |
| Jumper Wire (assorted lengths 65 pieces) | 1 | WIR-020-02410-EH |
| Male-Female DuPont (Jumper) 20mm Wire x10 | 1 | ELWIRE-HS-MF-10-05 |
| 28mm LED 5MM White | 5 | ELLEDWH5mmDif05 |
| 28mm LED 5MM Red | 5 | ELLEDRD5mmDif05 |
| 28mm LED 5MM Green | 5 | ELLEDGR5mmDif05 |
| 28mm LED 5MM Yellow | 5 | ELLEDYL5mmDif05 |
| 28mm LED 5MM Blue | 5 | ELLEDBL5mmDif05 |
| 5MM 4pin Common Anode Clear RGB Tri-Color Red Green Blue LED Diodes | 1 | ELLED-RGB-5mm-CL-CA-05 |
| Carbon Film Resistors 1% 1/4W | ||
| 10R | 10 | ELRES-CF1/4W-1%-10-05 |
| 100R | 10 | ELRES-CF1/4W-1%-100-05 |
| 220R | 30 | ELRES-CF1/4W-1%-220-05 |
| 330R | 10 | ELRES-CF1/4W-1%-330-05 |
| 510R | 10 | ELRES-CF1/4W-1%-510-03 |
| 1K | 10 | ELRES-CF1/4W-1%-1K-05 |
| 2K | 10 | ELRES-CF1/4W-1%-2K-05 |
| 5.1K | 10 | ELRES-CF1/4W-1%-5.1K-05 |
| 10K | 10 | ELRES-CF1/4W-1%-10K-05 |
| 100K | 10 | ELRES-CF1/4W-1%-100K-05 |
| 1M | 10 | ELRES-CF1/4W-1%-1M-05 |
| Resistor Values Guide | 1 | ELACC-RESVALUECARD-01 |
| ICs | ||
| L293D | 1 | L293D-05 |
| 74HC595 | 1 | 74HC595-05 |
| 555 Timer | 1 | ELIC-LM555-05 |
| UA741 | 1 | ELIC-UA741CN-05 |
| Capacitors | ||
| 22pF Ceramic Capacitor | 5 | ELCAP-CD-50V-22P-05 |
| 100K pF or .01uF (104) Ceramic Capacitor | 5 | ELCAP-CD-50V-.01U-05 |
| 10uF 50V Elecrolytic Capacitor | 2 | ELCAP-AE-50V-10U-05 |
| 100uF 50V Electrolytic Capacitor | 2 | ELCAP-AE-50V-100U-05 |
| Active Buzzer (5V) | 1 | ELSPKR-AB-5V-05 |
| Passive Buzzer (5V) | 1 | ELSPKR-PB-5V-05 |
| Tactile Push Button Switch 6x6x5 | 5 | ELSW-TPB-TH-05 |
| Tilt Ball Switch (Vibration Sensor) | 1 | ELSW-TILT-05 |
| 1 digit 7 Segment Display, 0.56 inch Red | 1 | ELLED-7SD1-.56-CC-RD-05 |
| 4 Digit 7 Segment LED Display 12pin 0.56 inch Red | 1 | ELLED-7SD4-.56-CC-RD-05 |
| LCD1602 Module (W pin header) | 1 | DIS-010-00015-EH |
| MAX7219 Dot Led 8x8 Matrix Module with cable（Red） | 1 | ELLEDMTX-MAX7219-05 |
| Potentiometer 10K with Top Knob | 2 | ELPOT-10K-3386P-103-TK-05 |
| Rotary Encoder Module | 1 | ELSW-REC-KS-01 |
| 3V Servo Motor w/breadboard pins | 1 | ELMOTOR-DC-3Vto6V-BBPINS-05 |
| Three-leaf Fan attachment | 1 | ELACC-3LFAN-05 |
| ADXL345 GY-291 Digital Three Axis Tilt Module and Accelerometer | 1 | ELSENS-ADXL345-GY291-01 |
