Product Description
Get ready for the Spring '26 ECE 372 lab courses by ordering your Essentials lab kit bundle today!
This kit has been prepared exclusively for University of Arizona students and contains the components listed below.
Enjoy this U of A exclusive bundle which includes the Essentials kit plus extra sensors and components at special price of $84.50 which is $10 OFF the original price. Quantities are limited.
This kit includes free shipping to US addresses.
FOR REMOTE STUDENTS (NEED KIT SENT OUTSIDE OF USA) - Students located outside of USA will be required to pay for shipping. Please reach out to us directly at support@eurekaleap.com for assistance and to work out shipping documentation and details. Thank you.
All kits sales are final once shipped.
ECE372 ESSENTIALS PARTS LIST:
| Description | Qty/kit | Part Number |
| Mega 2560 Board MCU (Arduino compatible) w/1.64Ft USB 2 A-B Cable .5M | 1 | ELMCU-Mega2560R3-ORIG.01 |
| Solderless Premium Breadboard 830pt with two power rails | 1 | BBP-10010-EH |
| Jumper Wire (assorted lengths 65 pieces) | 1 | WIR-020-02410-EH |
| Male-Female DuPont (Jumper) 20mm Wire x10 | 1 | ELWIRE-HS-MF-10-05 |
| 28mm LED 5MM White | 5 | ELLEDWH5mmDif05 |
| 28mm LED 5MM Red | 5 | ELLEDRD5mmDif05 |
| 28mm LED 5MM Green | 5 | ELLEDGR5mmDif05 |
| 28mm LED 5MM Yellow | 5 | ELLEDYL5mmDif05 |
| 28mm LED 5MM Blue | 5 | ELLEDBL5mmDif05 |
| 5MM 4pin Common Anode Clear RGB Tri-Color Red Green Blue LED Diodes | 1 | ELLED-RGB-5mm-CL-CA-05 |
| Carbon Film Resistors 1% 1/4W | ||
| 10R | 10 | ELRES-CF1/4W-1%-10-05 |
| 100R | 10 | ELRES-CF1/4W-1%-100-05 |
| 220R | 30 | ELRES-CF1/4W-1%-220-05 |
| 330R | 10 | ELRES-CF1/4W-1%-330-05 |
| 510R | 10 | ELRES-CF1/4W-1%-510-03 |
| 1K | 10 | ELRES-CF1/4W-1%-1K-05 |
| 2K | 10 | ELRES-CF1/4W-1%-2K-05 |
| 5.1K | 10 | ELRES-CF1/4W-1%-5.1K-05 |
| 10K | 10 | ELRES-CF1/4W-1%-10K-05 |
| 100K | 10 | ELRES-CF1/4W-1%-100K-05 |
| 1M | 10 | ELRES-CF1/4W-1%-1M-05 |
| Resistor Values Guide | 1 | ELACC-RESVALUECARD-01 |
| ICs | ||
| L293D | 1 | L293D-05 |
| 74HC595 | 1 | 74HC595-05 |
| 555 Timer | 1 | ELIC-LM555-05 |
| UA741 | 1 | ELIC-UA741CN-05 |
| Capacitors | ||
| 22pF Ceramic Capacitor | 5 | ELCAP-CD-50V-22P-05 |
| 100K pF or .01uF (104) Ceramic Capacitor | 5 | ELCAP-CD-50V-.01U-05 |
| 10uF 50V Elecrolytic Capacitor | 2 | ELCAP-AE-50V-10U-05 |
| 100uF 50V Electrolytic Capacitor | 2 | ELCAP-AE-50V-100U-05 |
| Active Buzzer (5V) | 1 | ELSPKR-AB-5V-05 |
| Passive Buzzer (5V) | 1 | ELSPKR-PB-5V-05 |
| Tactile Push Button Switch 6x6x5 | 5 | ELSW-TPB-TH-05 |
| Tilt Ball Switch (Vibration Sensor) | 1 | ELSW-TILT-05 |
| 1 digit 7 Segment Display, 0.56 inch Red | 1 | ELLED-7SD1-.56-CC-RD-05 |
| 4 Digit 7 Segment LED Display 12pin 0.56 inch Red | 1 | ELLED-7SD4-.56-CC-RD-05 |
| LCD1602 Module (W pin header) | 1 | DIS-010-00015-EH |
| MAX7219 Dot Led 8x8 Matrix Module with cable（Red） | 1 | ELLEDMTX-MAX7219-05 |
| Potentiometer 10K with Top Knob | 2 | ELPOT-10K-3386P-103-TK-05 |
| Rotary Encoder Module | 1 | ELSW-REC-KS-01 |
| 3V Servo Motor w/breadboard pins | 1 | ELMOTOR-DC-3Vto6V-BBPINS-05 |
| Three-leaf Fan attachment | 1 | ELACC-3LFAN-05 |
| ADXL345 GY-291 Digital Three Axis Tilt Module and Accelerometer | 1 | ELSENS-ADXL345-GY291-01 |

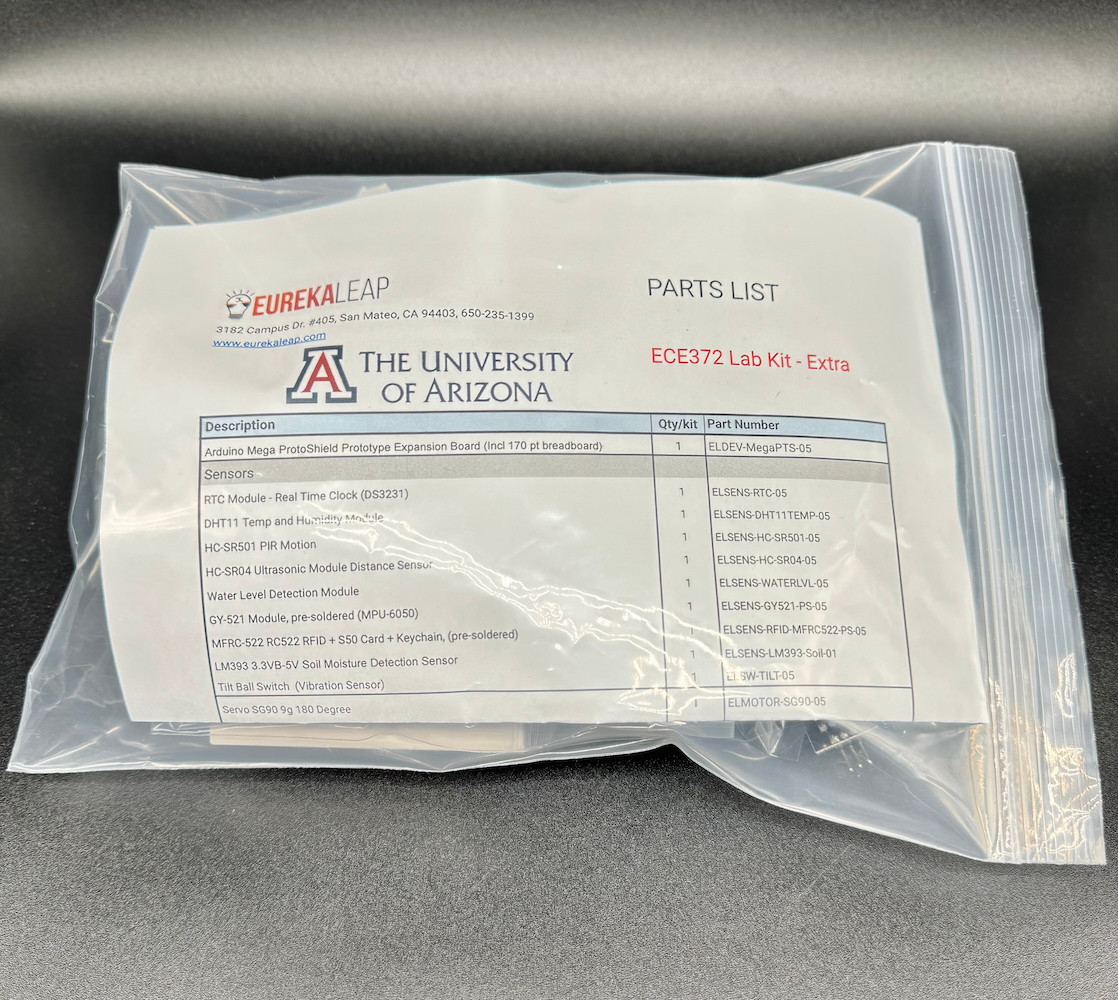

ECE372 EXTRAS PARTS LIST:
| Description | Qty/kit | Part Number |
| Arduino Mega ProtoShield Prototype Expansion Board (Incl 170 pt breadboard) | 1 | ELDEV-MegaPTS-05 |
| Sensors | ||
| RTC Module - Real Time Clock (DS3231) | 1 | ELSENS-RTC-05 |
| DHT11 Temp and Humidity Module | 1 | ELSENS-DHT11TEMP-05 |
| HC-SR501 PIR Motion | 1 | ELSENS-HC-SR501-05 |
| HC-SR04 Ultrasonic Module Distance Sensor | 1 | ELSENS-HC-SR04-05 |
| Water Level Detection Module | 1 | ELSENS-WATERLVL-05 |
| Sound Module | 1 | ELSENS-SOUND-05 |
| GY-521 Module, pre-soldered (MPU-6050) | 1 | ELSENS-GY521-PS-05 |
| MFRC-522 RC522 RFID + S50 Card + Keychain, (pre-soldered) | 1 | ELSENS-RFID-MFRC522-PS-05 |
| LM393 3.3VB-5V Soil Moisture Detection Sensor | 1 | ELSENS-LM393-Soil-01 |
| Other Components | ||
| Servo SG90 9g 180 Degree | 1 | ELMOTOR-SG90-05 |
| 28BYJ-48 5V 4-Phase Stepper Step Motor | 1 | ELMOTOR-28BYJ48-4P-05 |
| ULN2003 Stepper Motor Driver Board | 1 | ELMOTOR-DB-ULN2003-05 |
| Breadboard Power Supply Module (9V) | 1 | ELPOWER-PWS-KS-05 |
| 9V 1A Power Supply | 1 | ELPOWER-PS-9V1A-05 |
| 9V Battery Snap with DC Connector | 1 | ELPOWER-BATSNAP-DC-9V-05 |
| 9V Battery | 1 | ELPOWER-BAT-9VALK-01 |
| SRD-05VDC-SL-C Power Relay 5pin | 1 | ELPOWER-PR-5VDC-5P-05 |
| IR Remote Control | 1 | ELACC-IRR01-05 |
| 1838B IR Receiving Head Remote Control Receiver | 1 | ELACC-IRRCR1838B-05 |
| 5mm 5528 LDR Light Dependent Resistor | 2 | ELSENS-LDR-5528-05 |
| Thermistor (10K) | 1 | ELPOWER-CPT-10K-05 |
| 1N4007 | 5 | ELSEMI-DIO-1N4007-05 |
| PN2222 | 5 | ELSEMI-PN2222-NPN-05 |
| S8050 | 5 | ELSEMI-S8050-NPN-05 |
| Joystick Module | 1 | INP-010-00015-EH |
| Membrane Switch Keypad Module (matrix 4x4) | 1 | ELKEYP-4416-05 |
