Product Description

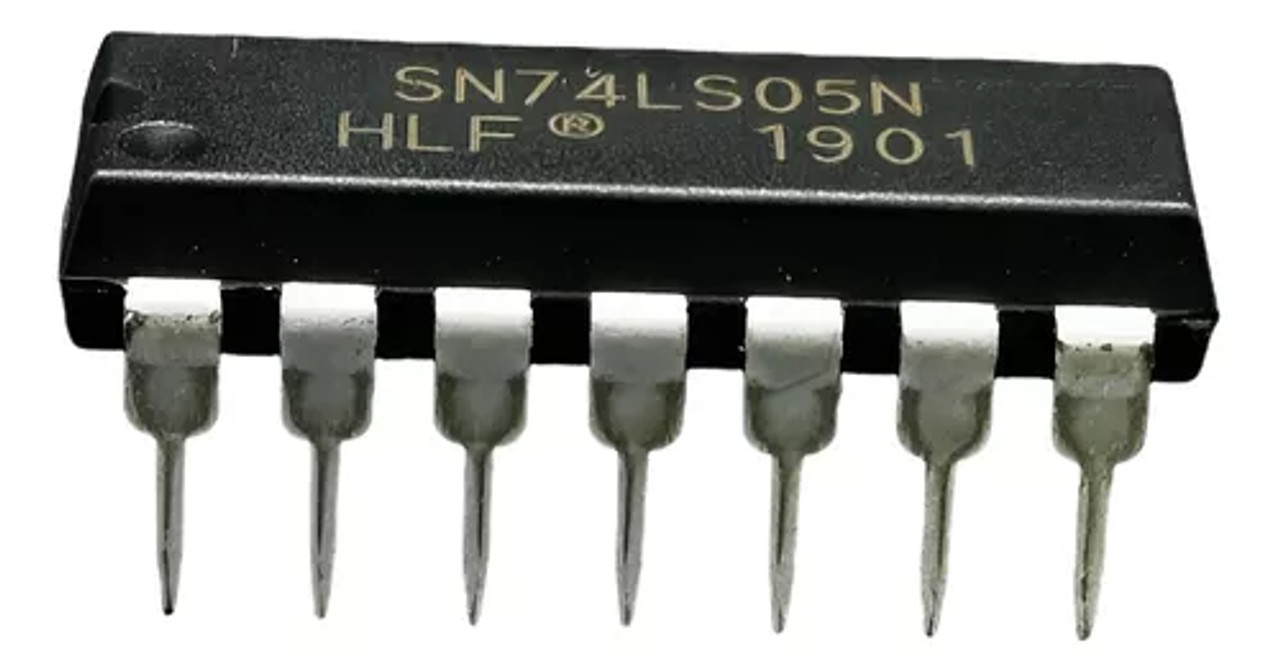

The SN74LS05N is a versatile hex inverter IC with open-collector outputs, designed for use in digital logic applications. Part of the 74LS series, this TTL (Transistor-Transistor Logic) component is ideal for interfacing different voltage levels, driving LEDs, or other applications requiring open-collector functionality. Its reliable performance and ease of integration make it a valuable component for both hobbyist and professional projects.
Key Features:
- Logic Type: Hex Inverter with Open-Collector Outputs
- Technology: TTL (Low-Power Schottky) for high-speed operation
- Number of Gates: Six independent inverters
- Output Type: Open-collector for driving higher current or voltage loads
- Operating Voltage Range: 4.75V to 5.25V (typically 5V)
- Package Type: DIP-14 (Dual In-line Package with 14 pins)
- Operating Temperature Range: 0°C to +70°C, suitable for standard environments
- Current Sinking Capability: Up to 30mA per output
Applications:
- Level Shifting: Interfacing between different voltage levels
- LED Drivers: Directly driving LEDs or other similar loads
- Relay Drivers: Controlling relays in switching applications
- Digital Logic: General-purpose logic inversion
- Clock and Signal Conditioning: Waveform shaping and logic signal preparation
- DIY Projects: Ideal for hobbyist electronics and prototyping
- Educational Use: Great for learning digital electronics and open-collector functionality
Benefits:
- Flexible Output: Open-collector outputs allow higher load driving capability
- Standard TTL Compatibility: Easy integration into existing TTL logic circuits
- Reliable and Robust: Designed for stable performance in various applications
- Wide Use Cases: Suitable for interfacing, signal driving, and general logic inversion
The SN74LS05N is an essential component for projects requiring open-collector outputs or enhanced current driving capabilities. Its robust design and broad application range make it a go-to choice for engineers, educators, and electronics enthusiasts alike.
