Product Description
Get ready for the Spring '26 ECE lab courses by ordering your Premium ECE lab kit today! Use this web page for courses taught on the Indianapolis campus only.
This kit has been prepared exclusively for Purdue University students and contains the components, cables and breadboard listed below.
Alternatively, students are encouraged to consider the purchase of one of the bundles recommended below which includes the kit plus a 6000 count premium digital multimeter at special price of $29.67 and/or oscilloscope probe set at a price of $9.98. Quantities are limited. To take advantage of these special bundles, please use the links below:

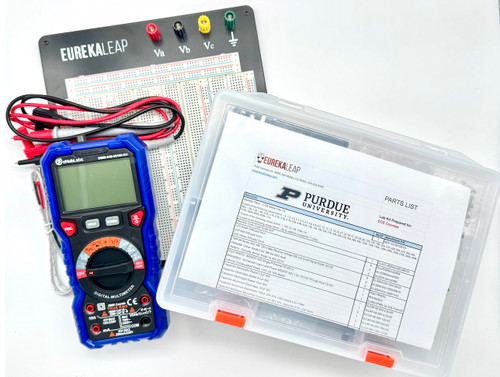

KIT and Digital Multimeter ONLY: Special bundle price $108.66

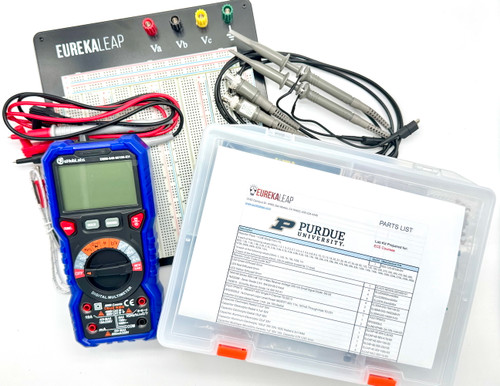

KIT, Digital Multimeter and PROBE: Special bundle price $118.64
KIT and PROBE ONLY: Special bundle price $88.97
Shipping details and options:
Please enter the following shipping address at checkout:
(Your name here) c/o Purdue University
723 W Michigan St.
Indianapolis, IN 46202
IMPORTANT NOTE: All orders placed before January 12th will be shipped to and must be picked up on campus. Please see your instructor for specific details on picking up your order.
Orders received before January 12th at 3:00PM Eastern time will receive FREE SHIPPING to campus with pick-up some time after January 20th. Orders received earlier than January 12th may be available at earlier pick-up times. See your instructor for more information.
Orders received between January 12th and January 19th by 3:00pm Eastern can receive free shipping to campus using code PURDUEFREE BUT kits will arrive in approximately 8 business days so your kit may not arrive before possible deadlines given by your instructor.
Orders received after January 19th will be sent via two day air express service at a flat rate of $15.97 per kit.
EXPRESS OPTION: After January 12th at 3:00pm, kits will be shipped via two day air express service for $15.97 per kit if the free shipping option is not taken. These will ship directly to the address that you specify and arrive in two business days if the order is received before 3:00pm Eastern time.
All kits sales are final once shipped.
FOR REMOTE STUDENTS (NEED KIT SENT OUTSIDE OF USA) - International students (located outside of USA) will be required to pay for additional shipping. The $15.97 fee will be credited towards the preparation of the kit and all customs & shipping documentation for the international shipment from the USA, but does not include the full cost of shipping. Please reach out to us directly at support@eurekaleap.com for assistance and to work out shipping documentation and details. Thank you.
Your custom-made course kit includes the following components:
| Description | Qty/kit | Manufacturer P/N |
| Resistor Pack - 1/2W Metal Film 1% | 1 | RES-120-00100-EH |
| 5 each of the following values (Ohm): 1.2, 1.5, 2.2, 2.7, 3.3, 4.7, 5.6, 6.8, 8.2, 10, 12, 15, 18, 22, 27, 33, 39, 47, 56, 68, 82, 120, 150, 180, 220, 270, 330, 390, 470, 560, 680, 820, 1.2k, 1.5k, 1.8k, 2.2k, 2.7k, 3.3k, 3.9k, 4.7k, 5.6k, 6.8k, 8.2k, 12k, 15k, 18k, 22k, 27k, 33k, 39k, 47k, 56k, 68k, 82k, 120k, 130k, 150k, 180k, 200k, 220k, 270k, 330k, 390k, 470k, 560k, 680k, 820k, 10m. | ||
| 10 each of the following values (Ohm): 1, 100, 1k, 10k, 100k, 1m | ||
| 12 each of the following values (Ohm): 150 (In addition to 5 in multi-pack above for a total of 17) | ||
| Resistor Color Code Guide 4x3" | 1 | ELACC-RESVALUECARD-01 |
| LED Green Diffused 5mm | 4 | ELLEDGR5mmDif04 |
| LED Red Diffused 5mm | 4 | ELLEDRD5mmDif04 |
| LED Yellow Diffused 5mm | 4 | ELLEDYL5mmDif04 |
| 1N4148 Series 500 mW 100 V Max Reverse Voltage 200 mA Small Signal Diode -DO-35 | 6 | ELSEMI-DIO-1N4148-03 |
| 1N5226B - Zener Diode 3.3V .5W DO-35-2 Axial | 2 | ELSEMI-DIO-1N5226B-01 |
| 1N5819 - Schottky Barrier Diode 1A 40V DO-41 | 5 | ELSEMI-DIO-1N5819-03 |
| FQU17P06TU - MOSFET 60V Single P-Channel TO-251-3 | 1 | FQU17P06TU |
| RFD3055LE - N-Channel Logic Level Power MOSFET 60V, 11A, 107mΩ Through Hole TO-251 | 1 | RFD3055LE |
| Inductor Encapsulated Power 1mH .2A 10% Radial | 2 | ELIND-EPWR-.2A-10%-1mH-03 |
| Capacitor Electrolytic Radial 2.2uF 50V | 1 | ELCAP-AE-50V-2.2U-03 |
| Capacitor Electrolytic Radial 4.7uF 50V | 1 | ELCAP-AE-50V-4.7U-03 |
| Capacitor Electrolytic Radial 10uF 50V | 2 | ELCAP-AE-50V-10U-03 |
| Capacitor Aluminum Electrolytic 22uF 35V | 1 | ELCAP-AE-35V-22U-03 |
| Capacitor Aluminum Electrolytic 100uF 35V 20% 105C Radial 6.3x11MM | 2 | ELCAP-AE-35V-100U-03 |
| Capacitor Multilayer Monolithic Ceramic 1uF 50V 10% Capacitor X7R 125C 5mm | 4 | ELCAP-MLC-50V-1U-03 |
| Capacitor Mylar Film 0.001uF / 1000pF 100 Volt 5% | 2 | ELCAP-MR-100V-.001U-03 |
| Capacitor Mylar Film 0.01uF / 10nF 100 Volt 5% | 2 | ELCAP-MR-100V-.01U-03 |
| Capacitor Mylar Film 0.1 uF 100 Volt 5% | 10 | ELCAP-MR-100V-.1U-03 |
| Capacitor Mylar Film 0.47uF 100 Volt 5% | 2 | ELCAP-MR-100V-.47U-03 |
| LM324N - Quad, 30-V, 1.2-MHz operational amplifier PDIP 14 | 2 | LM324N |
| LM339N - Quad Differential Comparator PDIP 14 | 1 | LM339N |
| LF356N - Single, 36-V, 5-MHz, high slew rate (12-V/µs), In to V+, JFET-input operational amplifier PDIP 8 | 1 | LF356N |
| LM386N-4 - 700-mW, mono, 5- to 18-V, analog input Class-AB audio amplifier PDIP-8 | 1 | LM386N-4 |
| LM431AIZ - 2%, 1%, or 0.5% accuracy, adjustable precision Zener shunt regulator TO-92 | 1 | LM431AIZ |
| LM1117T-ADJ - 800-mA 15-V linear voltage regulator TO-220 | 1 | LM1117T-ADJ |
| 555 Type, Timer/Oscillator (Single Precision Timer) PDIP8 | 2 | NE555P |
| INA121PA - FET-Input, Low Power Instrumentation Amplifier PDIP 8 | 1 | INA121PA |
| 3386P - Trimmer Resistors - Through Hole 3/8" 10K Ohms Single Turn 10% Top Knob | 6 | 3386P-1-103TLF-EL |
| Thermistor NTC 47K OHM 1% | 1 | NXRT15WB473FA3A016 |
| Phototransistors 940nm Top View Radial, T-1 Lens | 1 | PT204-6B |
| Infrared (IR) Emitter 940nm 3mm 1.3V 100m Radial | 1 | ELLED-IR-3mm-940nm-03 |
| Photoresistor/LDR GL5528 10Lux 10-20K Ohm Light 1M Ohm Dark Resistance 100mW | 3 | ELSENS-LDR-10.20KO.5528.01 |
| Mini 5mm Incandescent Lamp Bi-Pin Base 7361 5V 60mA | 3 | ELACC-7361Lamp-01 |
| Tactile Switch Pushbutton SPST-NO 6x6mm | 4 | ELSW-TPB-SPST-TH-03 |
| Jumper Wire set - 240 pcs., 22AWG, pre-formed | 1 | WIR-021-01420-EH |
| 1 Channel Relay Module 1 Channel 3.3V Dual Optocoupler | 1 | ELMECH-RM-1C-3.3V-01 |
| 3220 Tie Point Solderless Breadboard with 4 Binding Posts Free Circuit Test Board | 1 | BBP-010-00031-EH |
| Banana Plug to Test Pin Lead Set (1 Red; 1 Black) 36" | 1 | ELCAB-BNTPL-RB-36i-01 |
| Stereo Audio Cable Male-Male 3.5mm 6ft | 1 | ELCAB-STA-MM-3.5MM-6F-01 |
| Pocket Screwdriver 1/8" slotted with Clip | 1 | ELCAB-BNTPL-RB-36i-01 |
| Multi-Purpose Hand Tool for Cable Crimping, Stripper 14-24AWG, Cutter, Pliers, and Wire loop 6.6in (168mm) | 1 | ELTOOL-WCS-YTH-5022-01 |
| Straight Locking Clamp with Serrated Edge 5.5in (14cm) Medical Forceps Style | 1 | ELTOOL-CLAMP-5.5I-MS-01 |
| 2.1mm x 5.5mm Female DC Power Jack Screw Terminal Connector | 1 | ELCONN-DCP.ST-M-03 |
| Conn 3.5MM Mono Jack F 3 Conductor 3 Contacts TRS Kinked Pin Through Hole | 1 | STX-3120-3B |
| Power Adaptor AC/DC 100V-240V AC 50/60Hz Output: 5VDC 2000mA Black 2.1mm Plug | 1 | ELPOWER-PS-5V2A-05 |
| Plastic storage box with handle and latches, clear polypropylene 13.7x8.4x1.85in | 1 | ELBOX-2375002-01 |
