Product Description

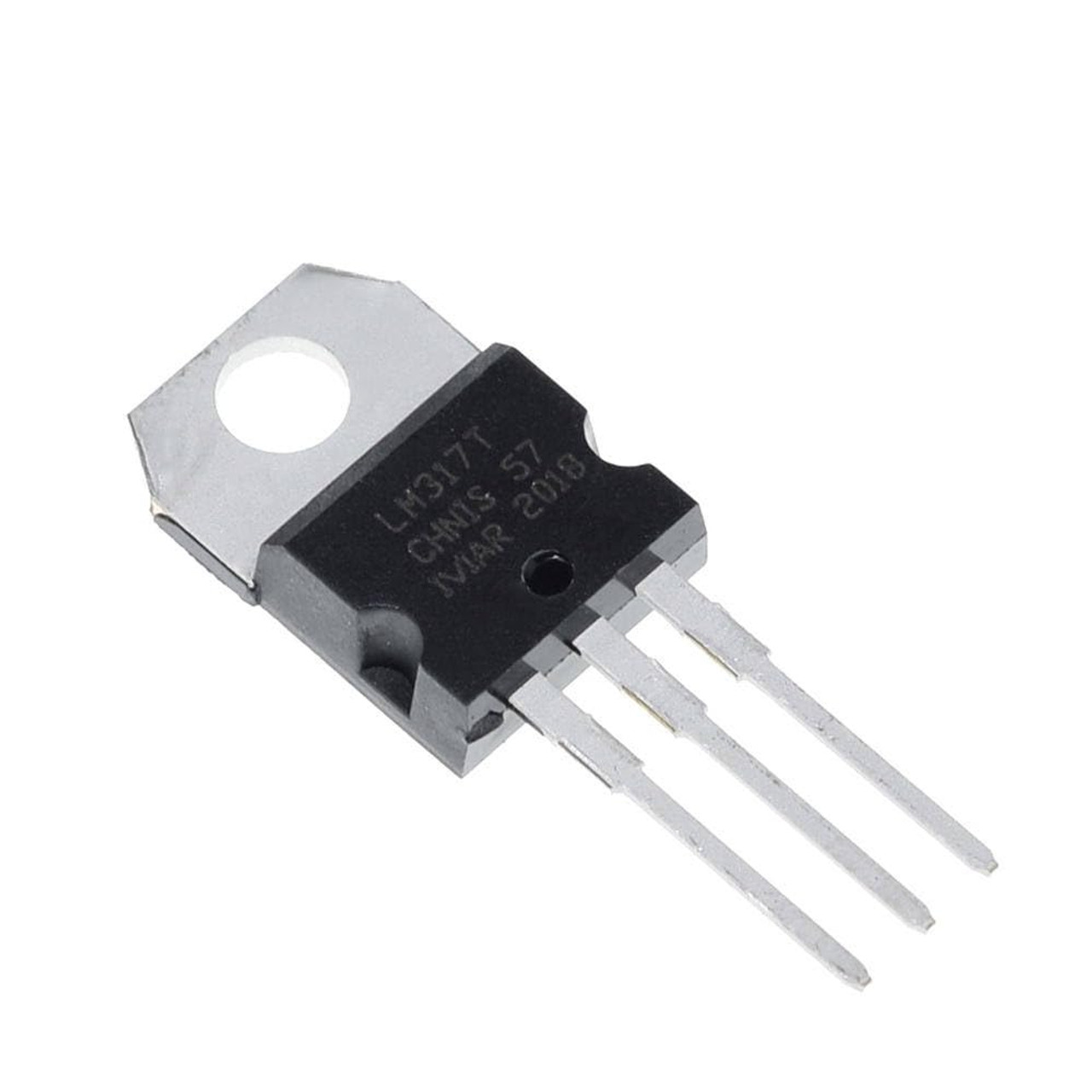

The LM317T is a versatile adjustable voltage regulator that offers a simple and efficient solution for a wide range of power supply applications. This regulator provides an output voltage that can be adjusted from 1.25V to 37V with a continuous output current of up to 1.5A, making it suitable for various electronic projects and professional designs.
Key features include:
- Adjustable Output Voltage: Capable of outputting a voltage range from 1.25V to 37V
- Output Current: Provides a continuous current of up to 1.5A
- High Line Regulation: Typically 0.01% per volt, ensuring stable output despite variations in input voltage
- High Load Regulation: Typically 0.1%, providing consistent performance under varying load conditions
- Thermal Overload Protection: Protects the device from damage due to excessive heat
- Short-Circuit Protection: Safeguards the regulator and connected circuitry from short-circuit conditions
- Safe Area Compensation: Enhances reliability by preventing the device from operating outside its safe operating area
- Package / Case: TO-220, facilitating easy mounting and heat dissipation
- Operating Temperature Range: -40°C to +125°C, ensuring reliable performance in diverse environments
Applications:
- Power Supplies: Ideal for creating stable and adjustable power supplies for electronic projects
- Battery Chargers: Suitable for designing battery charging circuits with adjustable output
- Current Regulators: Can be used in applications requiring precise current control
- Adjustable Voltage Sources: Perfect for providing adjustable voltage sources in testing and prototyping
The LM317T adjustable voltage regulator is a reliable and flexible component that simplifies the design of stable and adjustable power supply circuits. Its robust features and wide range of applications make it an essential tool for engineers, hobbyists, and professionals.
