Product Description
Get ready for the Circuit Analysis Lab (EEL3110C), Electronics I Lab (EEE3303C), and Electronics II Lab (EEE4304C) by ordering your kit today!
Presented by Dr. Gustavo Roig
This kit has been prepared exclusively for Florida International University students taking any or all of the above courses and includes the components listed below plus the PicoScope 2204A USB 2-Channel Oscilloscope, Spectrum Analyzer, Function Generator, and Waveform Generator 10MHz, 100MS/s.
This is one of three bundles offered for this course which vary based on the oscilloscope you choose.
If you are registered for the class, please order one of the three bundles of this kit now. You will find links to the other two bundles below.
All kits have a $16.49 flat shipping fee (kit only) and will arrive via FedEx 2 Day service and will usually ship the next business day. All kits sales are final once shipped.
FOR REMOTE STUDENTS (NEED KIT SENT OUTSIDE OF USA) - International students (located outside of USA) will be required to pay for additional shipping. The $16.49 fee will be credited towards the preparation of the kit and all customs & shipping documentation for the international shipment from the USA, but does not include the full cost of shipping. Please reach out to us directly at support@eurekaleap.com for assistance and to work out shipping documentation and details. Thank you.
Your custom-made course kit includes the following components:
| Description | Qty/kit |
| Resistor Carbon Film - 2.2K Ohm 1/4W, 5% | 5 |
| Resistor Carbon Film - 8.2K Ohm 1/4W, 5% | 5 |
| Resistor Carbon Film - 18K Ohm 1/4W, 5% | 5 |
| Resistor Carbon Film - 27K Ohm 1/4W, 5% | 5 |
| Resistor Carbon Film - 220K Ohm 1/4W, 5% | 5 |
| Resistor Carbon Film - 330K Ohm 1/4W, 5% | 5 |
| Resistor Carbon Film - 100 Ohm 1/4W, 5% | 5 |
| Resistor Carbon Film - 470 Ohm 1/4W, 5% | 5 |
| Resistor Carbon Film - 1K Ohm 1/4W, 5% | 20 |
| Resistor Carbon Film - 10K Ohm 1/4W, 5% | 5 |
| Resistor Carbon Film - 47K Ohm 1/4W, 5% | 5 |
| Resistor Carbon Film - 100K Ohm 1/4W, 5% | 5 |
| Resistor Carbon Film - 1M Ohm 1/4W, 5% | 5 |
| Multilayer Ceramic Capacitors MLCC - 10pF 50V 10% Z5U 5mm LS | 2 |
| Multilayer Ceramic Capacitors MLCC - 47pF 50V 10% X7R 5mm LS | 2 |
| Multilayer Ceramic Capacitors MLCC - 100pF 50V 10% X7R 5mm LS | 2 |
| Multilayer Ceramic Capacitors MLCC - 220pF 50V 10% X7R 5mm LS | 2 |
| Multilayer Ceramic Capacitors MLCC - 470pF 50V 10% X7R 5mm LS | 2 |
| Multilayer Ceramic Capacitors MLCC - 680pF 50V 10% Z5U 5mm LS | 2 |
| Capacitor Electrolytic Radial 1uF 50V 20% 105C 5mm x 11mm | 2 |
| Capacitor Electrolytic Radial 4.7uF 50V 20% 105C 5x11mm | 2 |
| Capacitor Electrolytic Radial 10uF 50V 20% 105C 5x11mm | 2 |
| Capacitor Electrolytic Radial 100uF 50V 20% 105C Radial 8x11mm | 2 |
| Capacitor Mylar Film .001uF / 1000pF 50V 5% PS 3.5mm | 2 |
| Capacitor Mylar Film .01uF / 10nF 50V 5% PS 4mm | 2 |
| Capacitor Mylar Film .047uF / 47nF 50V 5% PS 6mm | 2 |
| Capacitor Mylar Film .1uF 50V 5% PS 7.5mm | 2 |
| Inductor RF Choke Wirewound 10mH 10% 300KHz Ferrite core 50mA RDL LS 5mm | 1 |
| Inductor RF Choke Wirewound 33mH 10% 100KHz Ferrite core 30mA RDL LS 5mm | 1 |
| Inductor Choke Coil 4.7uH Axial .5W 10% Epoxy Coated | 1 |
| Inductor Choke Coil 10uH Axial .25W 10% Epoxy Coated | 1 |
| Inductor Choke Coil 100uH Axial .5W 10% Epoxy Coated | 1 |
| 3386P - Trimmer Resistors - Through Hole 3/8" 10K Ohms Single Turn 10% Top Knob | 1 |
| 3386P - Trimmer Resistors - Through Hole 3/8" 500K Ohms Single Turn 10% Top Knob | 1 |
| LED Green Diffused 5mm (T-1 3/4), 20mA 3-3.2V 20000mcd | 2 |
| LED Red Diffused 5mm (T-1 3/4), 20mA 2-2.2V 3000mcd | 2 |
| LED Yellow Diffused 5mm (T-1 3/4), 20mA 2-2.2V 4000mcd | 2 |
| 1N4001 DIODE 1A 50V DO-41 | 4 |
| 7805CV Linear Voltage Regulator IC Positive Fixed 5V 1.5A TO-220 | 2 |
| 555 Type, Timer/Oscillator (Single Precision Timer) PDIP8 | 2 |
| LM358N: 2-Channel, 1MHz, industry standard, 32V op amp 8-PDIP | 5 |
| 1N4728A Zener Diode 1W 3.3V DO-41 | 2 |
| 2N3904 Bipolar Transistor NPN 40V .2A TO-92 625mW | 6 |
| 2N3906 Bipolar Transistor NPN 40V .2A TO-92 625mW | 2 |
| 2N7000 MOSFET N-CHANNEL 60V .2A TH TO-92-3 | 6 |
| C106D SCR Thyristor 400V 4A TO-126 | 1 |
| MJE3055T NPN RF Power Bipolar Transistor 10A 60C TO-220 | 2 |
| MPF102 RF JFET N-Channel Transistor 25V TO-92 | 2 |
| PN2222A NPN Transistor 40V 1A TH TO-92-3 | 2 |
| PN2907A PNP Transistor 60V .8A TO-92 Gen Purpose Amplifier | 2 |
| Bridge Rectifier Diode Single Phase 1.5A 400V Max Current, WOM4 | 1 |
| Breadboard Power Supply Module 3.3V 5V (9V) | 1 |
| 9V 1A Power Supply | 1 |
| Alligator clip test leads (Pin female endings) 30cm/11.8in | 2 |
| Banana Plug Set (Red/Black) for use with Jumper Wire Pins | 1 |
| ELWIRE-MM-20: 10x 20cm (7.87 in) Male-to-Male Unzippable Jumper Wire | 1 |
| ELWIRE-MF-20: 10x 20cm (7.87in) Jumper Wire Male-to-Female Unzippable | 1 |
| Tactile Switch Pushbutton SPST-NO 6x6mm 7mm Stem Through Hole | 3 |
| 9V Battery Snap with DC Connector | 1 |
| 9V Battery Snap for breadboards with wire and pins | 2 |
| Jumper Wire set - 140 pcs., 22AWG, pre-formed, 14 lengths, 9 colors | 1 |
| Alligator Clip Test Lead Set 10 Pieces 5 Colors 14" (34.56cm)Length | 1 |
| eHub Labs 830pt Premium Breadboard w/two power rails & adhesive backing | 1 |
| EHub Labs Handheld Manual Ranging Digital Multimeter with extra fuses 2000 Counts With True RMS CE Approved | 1 |
| Technicians screwdriver 5.5in Combo with 1/8" slot and phillips blades (Eureka Leap) | 1 |
--

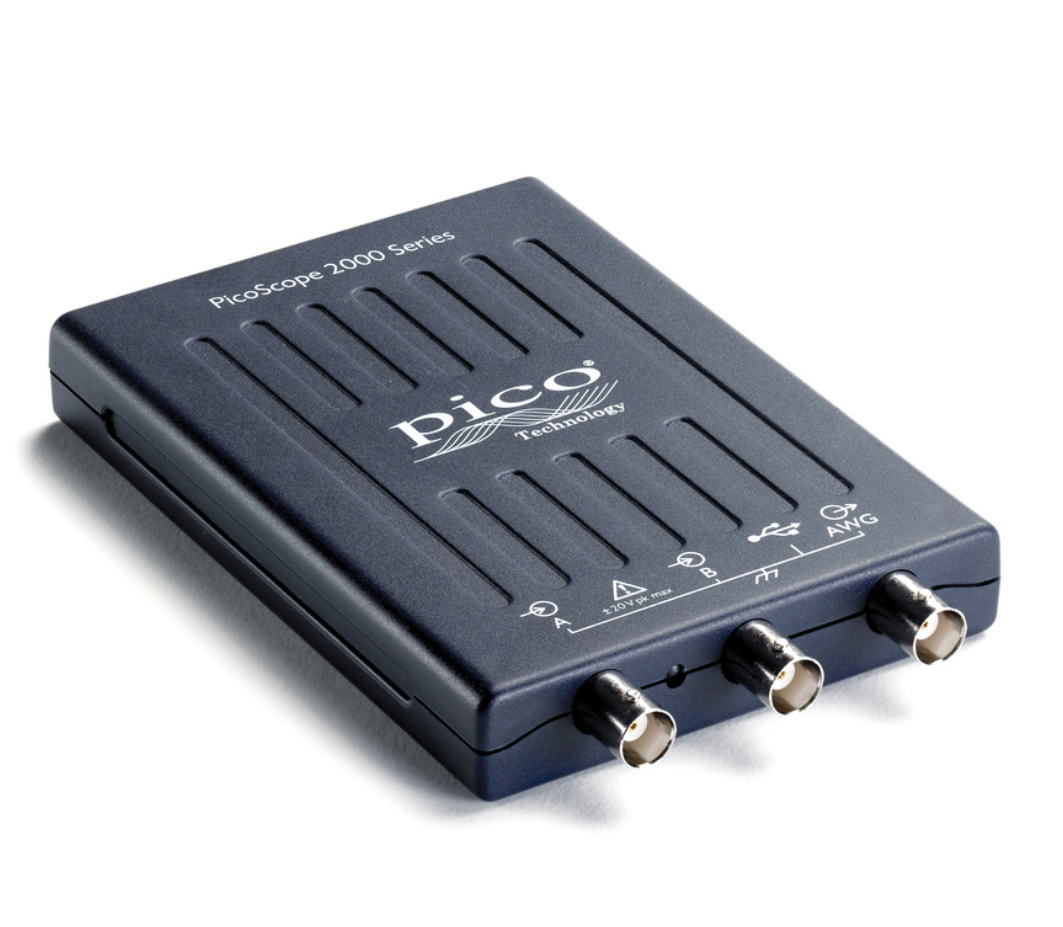

Bundled with the PicoScope 2204A; a USB 2-Channel Oscilloscope, Spectrum Analyzer, Function Generator, and Waveform Generator 10MHz, 100MS/s
--
.
Like a benchtop oscilloscope, only smaller and better. You can use your PicoScope 2000 Series as an advanced oscilloscope, spectrum analyzer, function generator, arbitrary waveform generator and protocol decoder out of the box. A complete electronics lab in one compact, low-cost, USB-powered unit.
- 2 channel
- Maximum sampling rate: 100 MS/s
- Capture memory: 8 Ks
- 6 instruments in one
- Ultra-compact design
- Up to 10 MHz bandwidth
- Decode over 38 serial protocols as standard
- USB connected and powered
- Windows, Linux and Mac software

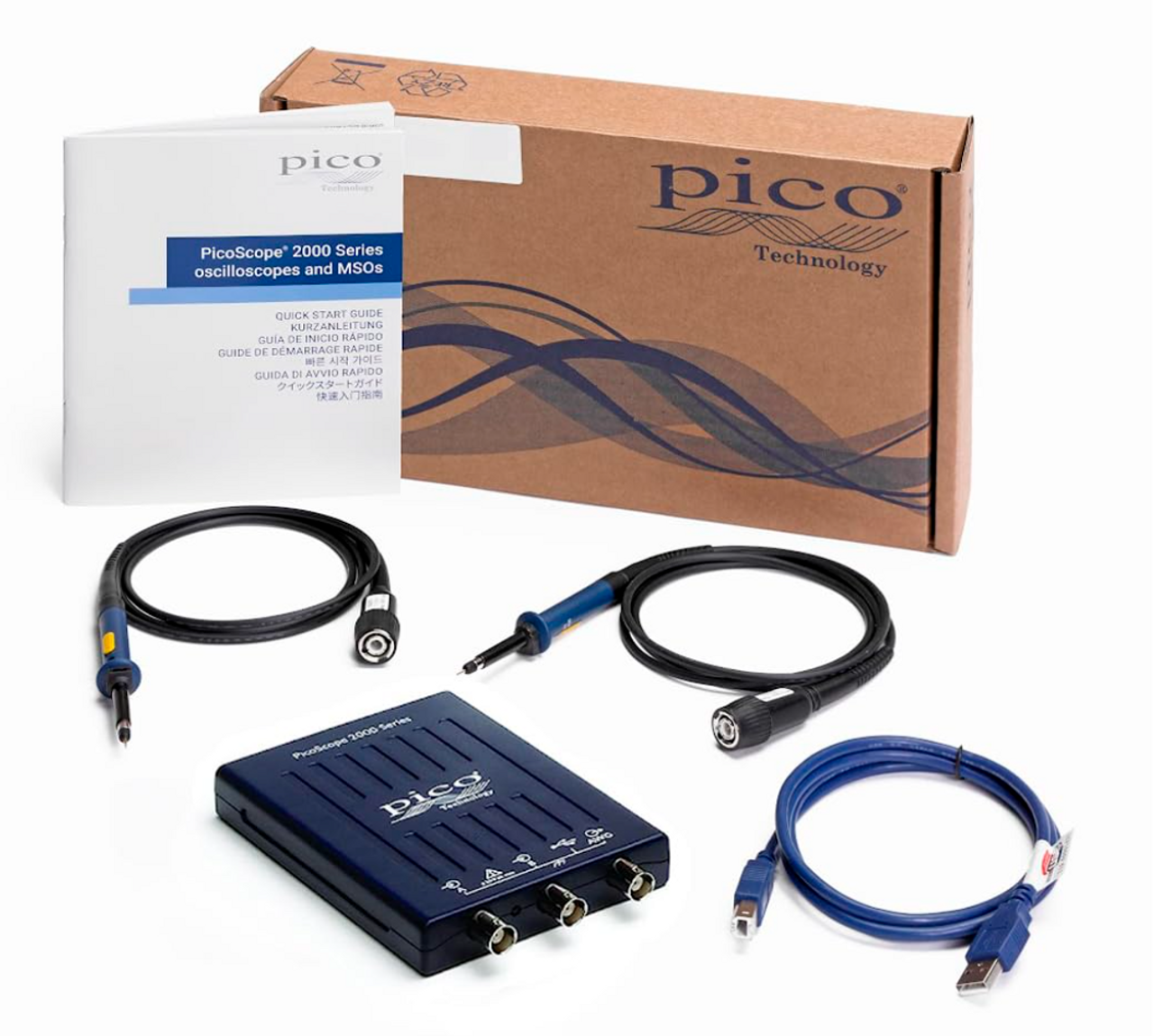

Package Contents:
- USB 2.0 (USB 3.0/3.1 compatible) cable
- Two x1/x10 passive probes
- One BNC to Alligator Clips Cable 36" (added to kit by FIU)
- Quick Start Guide
- Probes, cables and clips
Key Features:

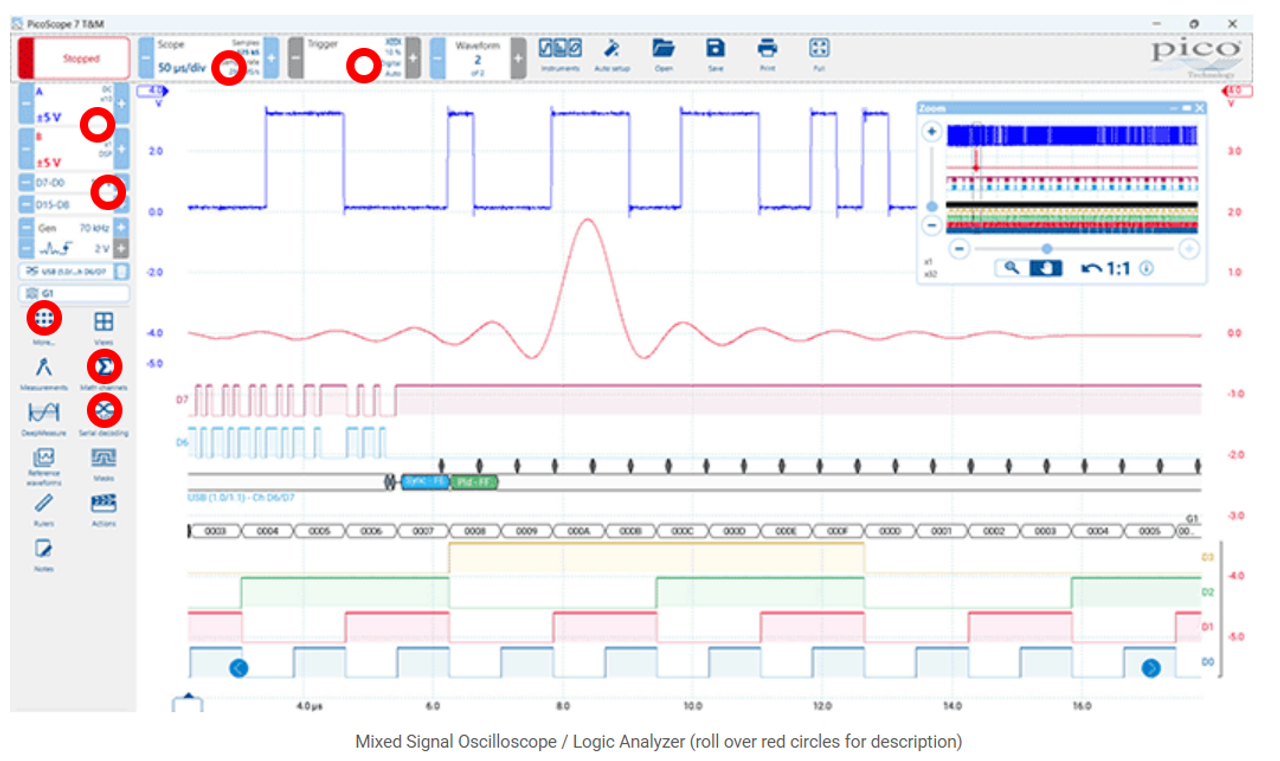

- Decode and display multiple protocols: You can decode multiple different protocols at the same (e.g. CAN, LIN and FlexRay). The only limit is the number of available channels. The high resolution of a PC display is perfect for such complex applications.
-
Data visualization: View decoded data in hex, binary, decimal, or ASCII directly beneath the waveform on a common time axis. Error frames are highlighted in red for quick identification and can be zoomed in for a detailed investigation of noise or signal integrity issues.
-
Graph format shows the decoded data beneath the waveform on a common time axis, with error frames marked in red. These frames can be zoomed to investigate noise or distortion.
-
Detailed table format: See a comprehensive list of decoded frames, including all data, flags, and identifiers. Use filtering to focus on specific frames or search for frames with particular properties. The statistics option gives deeper insight into the physical layer, revealing frame times and voltage levels. Click any frame in the table to zoom into its corresponding waveform.
-
Export and offline analysis: Easily export table view data for offline viewing and analysis, ensuring you can work with your data whenever and wherever you need.
- Link file feature: Accelerate your analysis by cross-referencing values to human-readable text.
-
Import: PicoScope can a spreadsheet to decode the hexadecimal data into user-defined text strings
