Product Description
Get ready for the Circuit Analysis Lab (EEL3110C), Electronics I Lab (EEE3303C), and Electronics II Lab (EEE4304C) by ordering your kit today!
Presented by Dr. Gustavo Roig
This kit has been prepared exclusively for Florida International University students taking any or all of the above courses and includes the components listed below plus the FNIRSI 2C53T 2-Channel Oscilloscope and DDS Signal Generator, 50MHz, 250 MS/s sample rate.
This is one of three bundles offered for this course which vary based on the oscilloscope you choose.
If you are registered for the class, please order one of the three bundles of this kit now. You will find links to the other two bundles below.
All kits have a $16.49 flat shipping fee (kit only) and will arrive via FedEx 2 Day service and will usually ship the next business day. All kits sales are final once shipped.
FOR REMOTE STUDENTS (NEED KIT SENT OUTSIDE OF USA) - International students (located outside of USA) will be required to pay for additional shipping. The $16.49 fee will be credited towards the preparation of the kit and all customs & shipping documentation for the international shipment from the USA, but does not include the full cost of shipping. Please reach out to us directly at support@eurekaleap.com for assistance and to work out shipping documentation and details. Thank you.
Your custom-made course kit includes the following components:
| Description | Qty/kit |
| Resistor Carbon Film - 2.2K Ohm 1/4W, 5% | 5 |
| Resistor Carbon Film - 8.2K Ohm 1/4W, 5% | 5 |
| Resistor Carbon Film - 18K Ohm 1/4W, 5% | 5 |
| Resistor Carbon Film - 27K Ohm 1/4W, 5% | 5 |
| Resistor Carbon Film - 220K Ohm 1/4W, 5% | 5 |
| Resistor Carbon Film - 330K Ohm 1/4W, 5% | 5 |
| Resistor Carbon Film - 100 Ohm 1/4W, 5% | 5 |
| Resistor Carbon Film - 470 Ohm 1/4W, 5% | 5 |
| Resistor Carbon Film - 1K Ohm 1/4W, 5% | 20 |
| Resistor Carbon Film - 10K Ohm 1/4W, 5% | 5 |
| Resistor Carbon Film - 47K Ohm 1/4W, 5% | 5 |
| Resistor Carbon Film - 100K Ohm 1/4W, 5% | 5 |
| Resistor Carbon Film - 1M Ohm 1/4W, 5% | 5 |
| Multilayer Ceramic Capacitors MLCC - 10pF 50V 10% Z5U 5mm LS | 2 |
| Multilayer Ceramic Capacitors MLCC - 47pF 50V 10% X7R 5mm LS | 2 |
| Multilayer Ceramic Capacitors MLCC - 100pF 50V 10% X7R 5mm LS | 2 |
| Multilayer Ceramic Capacitors MLCC - 220pF 50V 10% X7R 5mm LS | 2 |
| Multilayer Ceramic Capacitors MLCC - 470pF 50V 10% X7R 5mm LS | 2 |
| Multilayer Ceramic Capacitors MLCC - 680pF 50V 10% Z5U 5mm LS | 2 |
| Capacitor Electrolytic Radial 1uF 50V 20% 105C 5mm x 11mm | 2 |
| Capacitor Electrolytic Radial 4.7uF 50V 20% 105C 5x11mm | 2 |
| Capacitor Electrolytic Radial 10uF 50V 20% 105C 5x11mm | 2 |
| Capacitor Electrolytic Radial 100uF 50V 20% 105C Radial 8x11mm | 2 |
| Capacitor Mylar Film .001uF / 1000pF 50V 5% PS 3.5mm | 2 |
| Capacitor Mylar Film .01uF / 10nF 50V 5% PS 4mm | 2 |
| Capacitor Mylar Film .047uF / 47nF 50V 5% PS 6mm | 2 |
| Capacitor Mylar Film .1uF 50V 5% PS 7.5mm | 2 |
| Inductor RF Choke Wirewound 10mH 10% 300KHz Ferrite core 50mA RDL LS 5mm | 1 |
| Inductor RF Choke Wirewound 33mH 10% 100KHz Ferrite core 30mA RDL LS 5mm | 1 |
| Inductor Choke Coil 4.7uH Axial .5W 10% Epoxy Coated | 1 |
| Inductor Choke Coil 10uH Axial .25W 10% Epoxy Coated | 1 |
| Inductor Choke Coil 100uH Axial .5W 10% Epoxy Coated | 1 |
| 3386P - Trimmer Resistors - Through Hole 3/8" 10K Ohms Single Turn 10% Top Knob | 1 |
| 3386P - Trimmer Resistors - Through Hole 3/8" 500K Ohms Single Turn 10% Top Knob | 1 |
| LED Green Diffused 5mm (T-1 3/4), 20mA 3-3.2V 20000mcd | 2 |
| LED Red Diffused 5mm (T-1 3/4), 20mA 2-2.2V 3000mcd | 2 |
| LED Yellow Diffused 5mm (T-1 3/4), 20mA 2-2.2V 4000mcd | 2 |
| 1N4001 DIODE 1A 50V DO-41 | 4 |
| 7805CV Linear Voltage Regulator IC Positive Fixed 5V 1.5A TO-220 | 2 |
| 555 Type, Timer/Oscillator (Single Precision Timer) PDIP8 | 2 |
| LM358N: 2-Channel, 1MHz, industry standard, 32V op amp 8-PDIP | 5 |
| 1N4728A Zener Diode 1W 3.3V DO-41 | 2 |
| 2N3904 Bipolar Transistor NPN 40V .2A TO-92 625mW | 6 |
| 2N3906 Bipolar Transistor NPN 40V .2A TO-92 625mW | 2 |
| 2N7000 MOSFET N-CHANNEL 60V .2A TH TO-92-3 | 6 |
| C106D SCR Thyristor 400V 4A TO-126 | 1 |
| MJE3055T NPN RF Power Bipolar Transistor 10A 60C TO-220 | 2 |
| MPF102 RF JFET N-Channel Transistor 25V TO-92 | 2 |
| PN2222A NPN Transistor 40V 1A TH TO-92-3 | 2 |
| PN2907A PNP Transistor 60V .8A TO-92 Gen Purpose Amplifier | 2 |
| Bridge Rectifier Diode Single Phase 1.5A 400V Max Current, WOM4 | 1 |
| Breadboard Power Supply Module 3.3V 5V (9V) | 1 |
| 9V 1A Power Supply | 1 |
| Alligator clip test leads (Pin female endings) 30cm/11.8in | 2 |
| Banana Plug Set (Red/Black) for use with Jumper Wire Pins | 1 |
| ELWIRE-MM-20: 10x 20cm (7.87 in) Male-to-Male Unzippable Jumper Wire | 1 |
| ELWIRE-MF-20: 10x 20cm (7.87in) Jumper Wire Male-to-Female Unzippable | 1 |
| Tactile Switch Pushbutton SPST-NO 6x6mm 7mm Stem Through Hole | 3 |
| 9V Battery Snap with DC Connector | 1 |
| 9V Battery Snap for breadboards with wire and pins | 2 |
| Jumper Wire set - 140 pcs., 22AWG, pre-formed, 14 lengths, 9 colors | 1 |
| Alligator Clip Test Lead Set 10 Pieces 5 Colors 14" (34.56cm)Length | 1 |
| eHub Labs 830pt Premium Breadboard w/two power rails & adhesive backing | 1 |
| EHub Labs Handheld Manual Ranging Digital Multimeter with extra fuses 2000 Counts With True RMS CE Approved | 1 |
| Technicians screwdriver 5.5in Combo with 1/8" slot and phillips blades (Eureka Leap) | 1 |
---

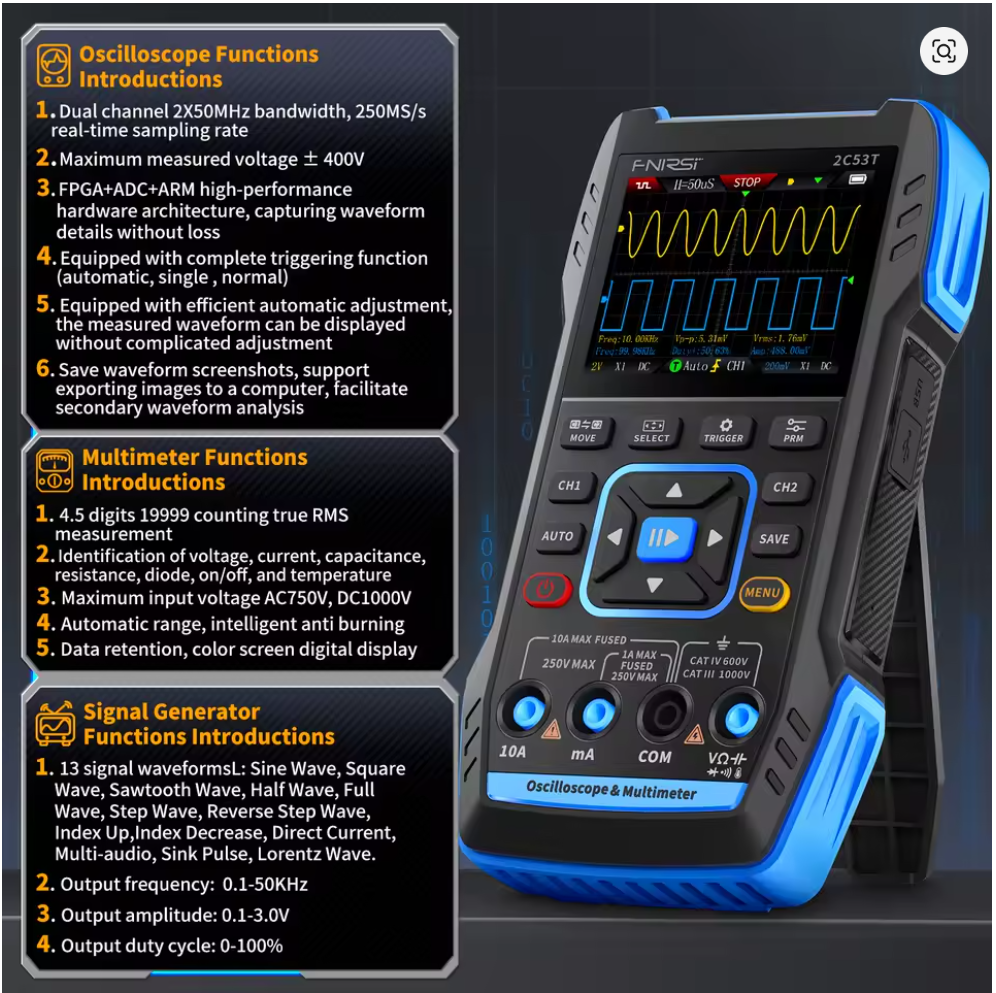

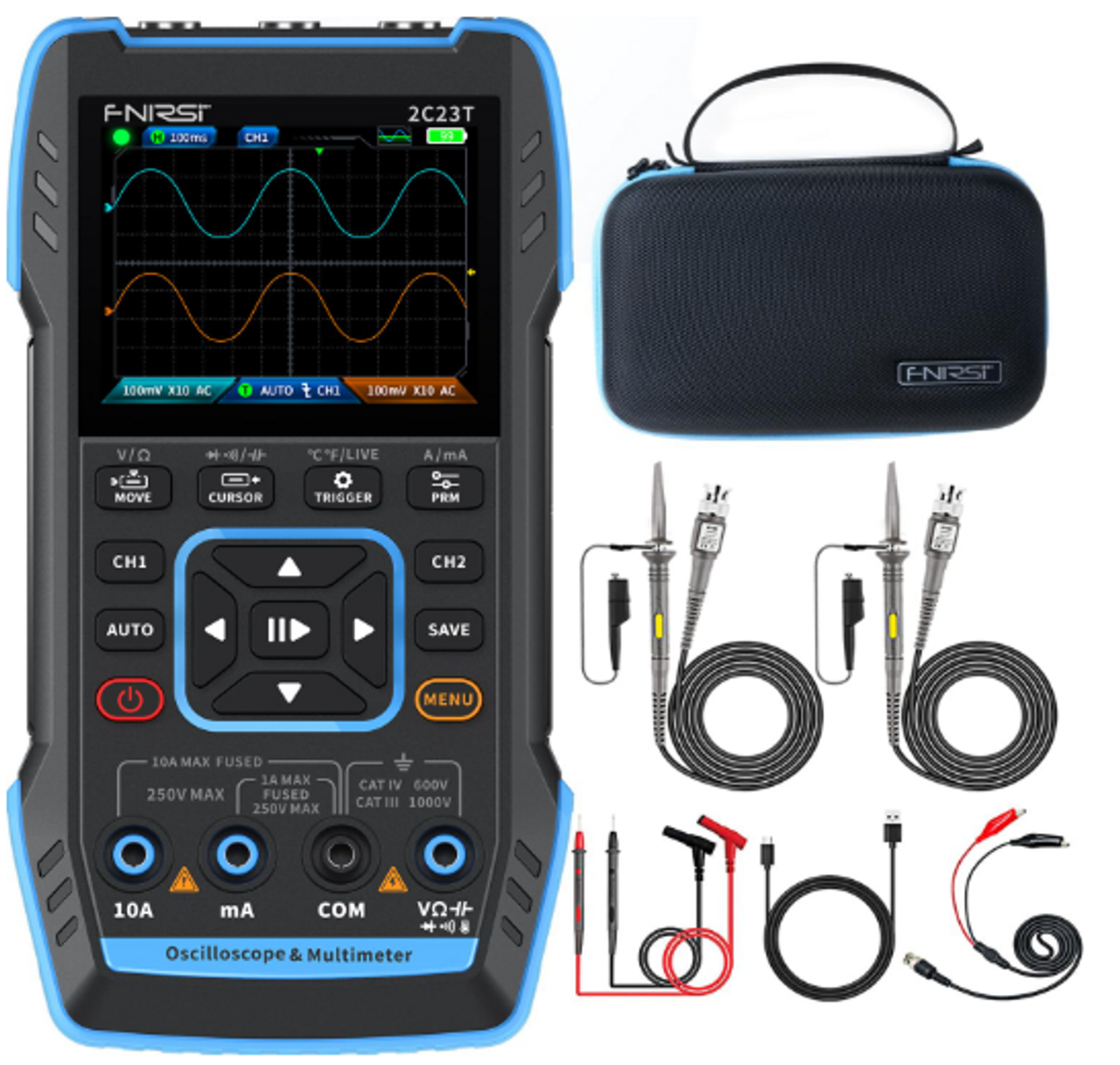

Bundled with the FNIRSI 2c53T; a 2-Channel Oscilloscope and DDS Signal Generator, 50MHz, 250 MS/s sample rate
---

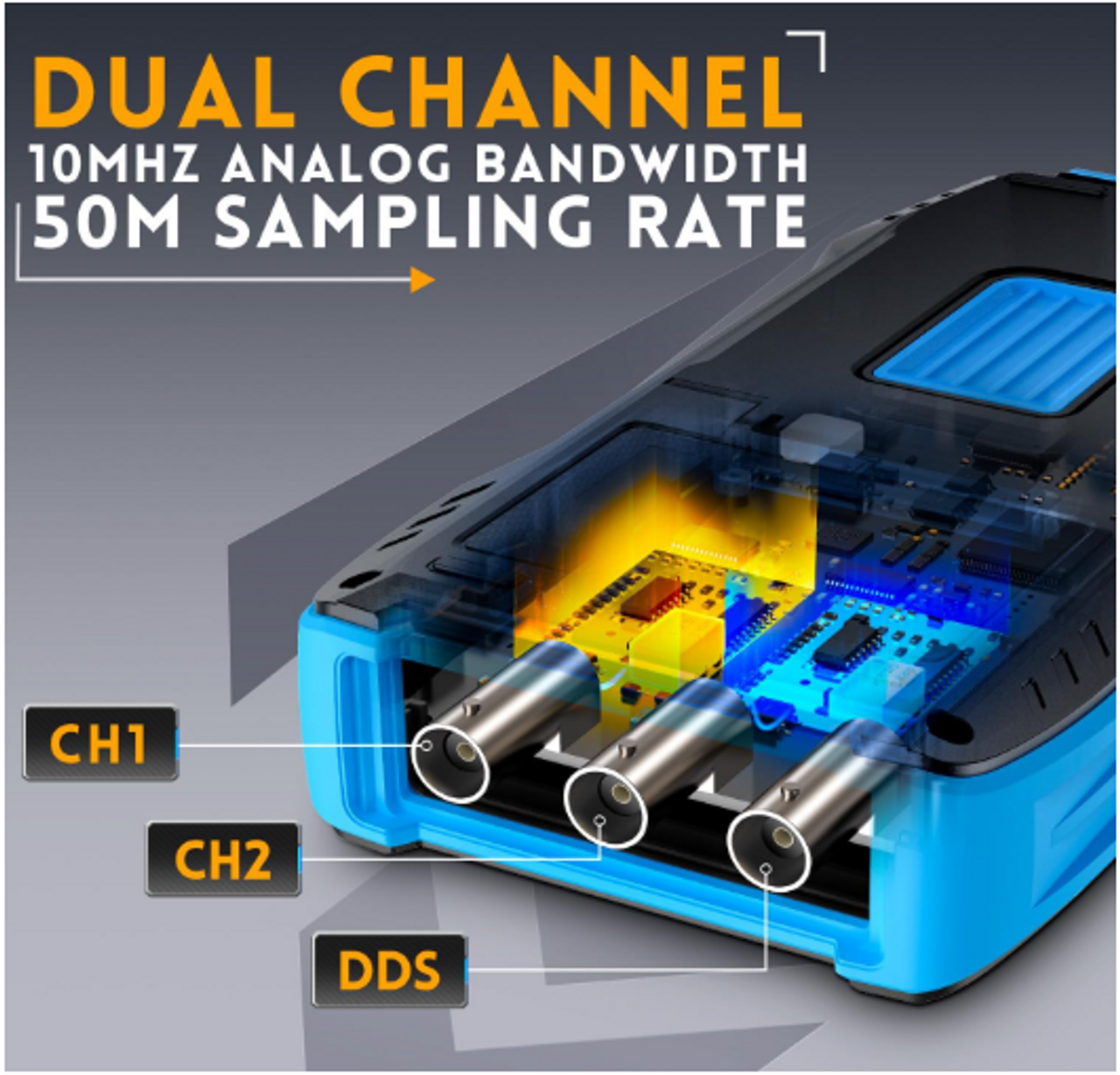

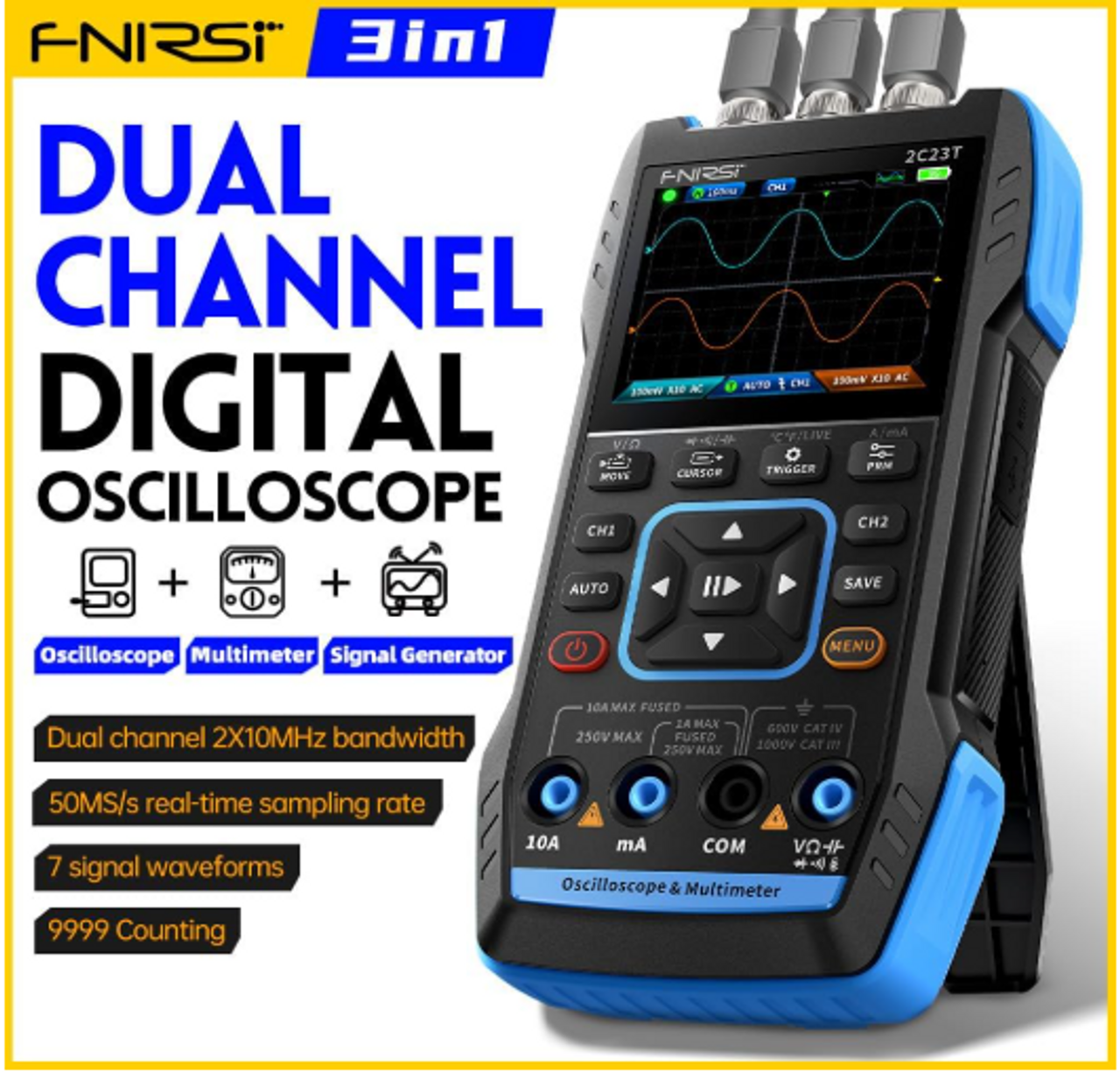

The FNIRSI-2C23T is a versatile 3-in-1 dual-channel digital oscilloscope designed for maintenance and development work. It combines an oscilloscope, multimeter, and signal generator in one device. The oscilloscope features FPGA+MCU+ADC architecture, 50 MS/s sampling rate, 10 MHz bandwidth, and high-voltage protection, supporting peak voltage measurements up to ±400V. It allows saving and analyzing waveform screenshots.
The multimeter offers 4-digit, 10,000-point true RMS measurements for AC/DC voltage, current, resistance, capacitance, diode, and continuity. The built-in DDS signal generator outputs 7 signal types, with adjustable frequency (up to 2 MHz), amplitude, and duty cycle.
The device has a 2.8" high-definition LCD (320x240 resolution) and a 3000mAh rechargeable battery with up to 6 hours of standby time, offering compact size and portability for a wide range of users including professionals, students, and hobbyists.
-
- Oscilloscope: 2 channel handheld oscilloscope, 10 MHz bandwidth, 50 MSa/s sampling rate, 32 kb record depth, automatic measurement function, max voltage 400 V, vertical sensitivity 200 mv/div-10 v/div , support waveform image storage and export
- Signal Generator: The maximum waveform output frequency can reach 2 MHz and a step of 1 Hz, and can output seven waveforms including sine, square, triangle, full, half, noise, and DC
- Save function: one-click save, screening function. You can upload the saved image by connecting to PC via Type-C. You can easily compare the waveforms by displaying the reference waveform and the measured waveform on the same screen
- Hardware Design:The Oscilloscope adopts FPGA+MCU+ADC hardware architecture, built-in high-voltage protection module, adopts 2.8 inch LCD display, built-in 3000 mAh Li-ion battery, standby time up to 6 H, Type-C interface supports 5 V/1 A charging
--
Product Parameters:
Basic Parameter
Product Model：2C53T
Display：2.8 inch HD color screen
Charging specifications: TYPE-C (5V/1A)
Battery: 3000mAh lithium battery
Oscilloscope Parameter
Channel: Dual channel
Sample Rate: 250MS/s
Analog Bandwidth: 50M(dual channel independent 50M)
Storage Depth: 1Kpts
Impedance：1MΩ
Time Base Range：10ns-20s
Vertical Sensitivity：10mV/div-10V/div（X1）
Maximum Measured Voltage：±400V
Trigger Mode：AUTO/Normal/Single
Trigger Type：Rising edge, Falling edge

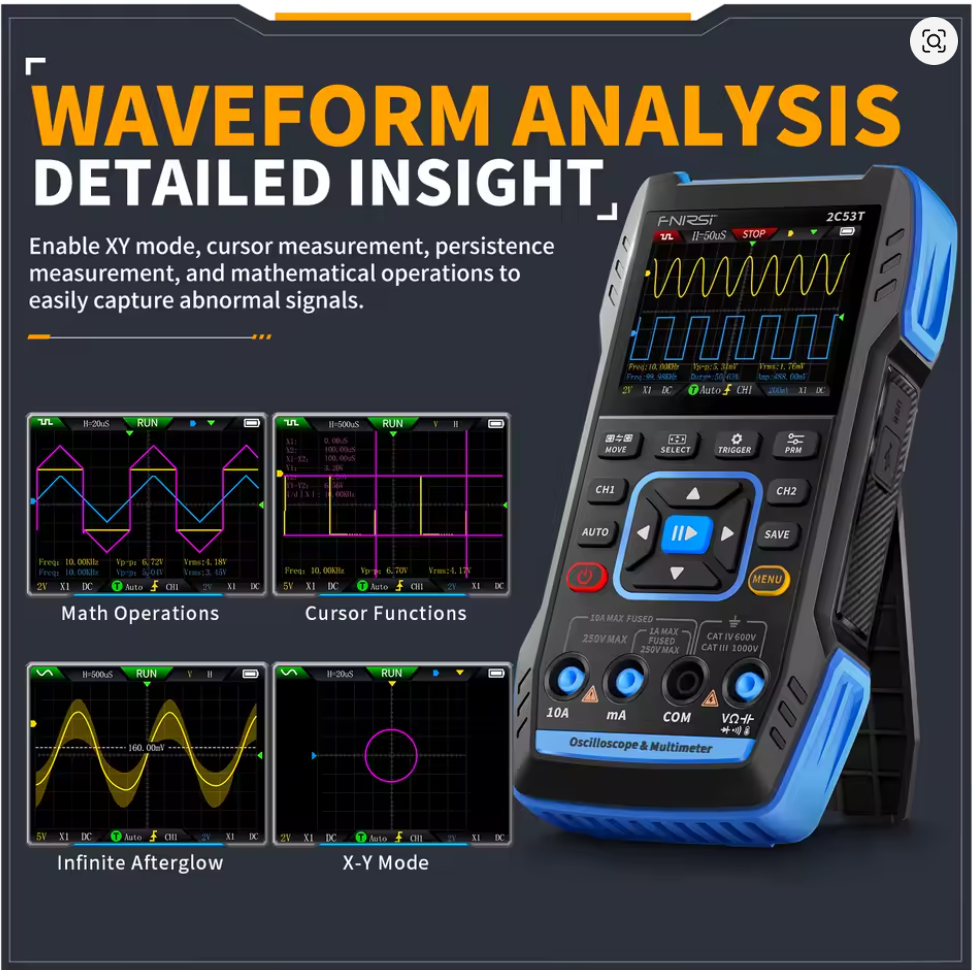

Display Mode：Y-T/Rolling/X-Y
Coupling Method：AC/DC
Persistence：OFF, 500ms, 1s, ∞
Math：8 Basic Operations + FFT
Waveform Screenshot Save：Supported
Export Waveform Image：Supported
Cursor Measurement：Supported
Multimeter Parameter
DC Voltage：1.9999V/19.999V/199.99V/1000V
AC Voltage：1.9999V/19.999V/199.99V/750.0V
DC Current：19.999mA/199.99mA/1.9999A/9.999A
AC Current：19.999mA/199.99mA/1.9999A/9.999A
Resistance：19.999MΩ/1.9999MΩ/199.99KΩ/19.999KΩ, 1.9999KΩ/199.99Ω
Capacitance: 999.9uF/99.99uF/9.999uF/999.9nF/99.99nF/9.999nF/9.999mF/99.99mF
Temperature: (-55~1300℃)/(-67~2372℉)
Diode: YES
Continuity test: YES
